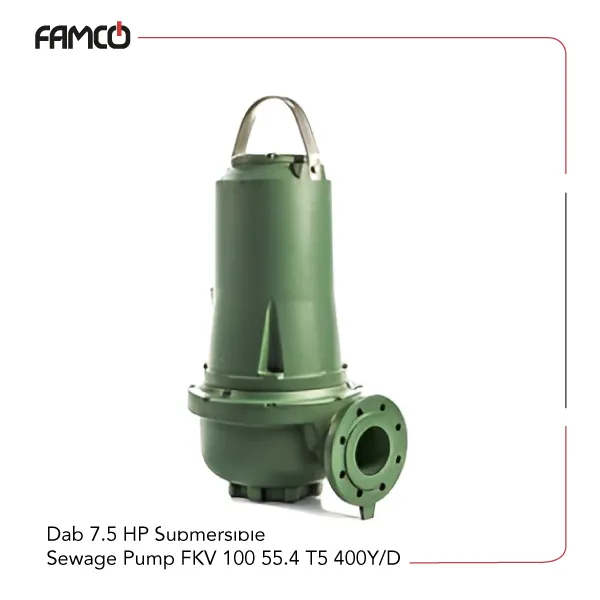

Dab 7.5 HP Submersible Sewage Pump FKV 100 55.4 T5 400Y/D

5.5 kW (7.5 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Categories: Sewage pump, Submersible Pump Tags: DAB Pumps, Dab Sewage Pumps, Dab Submersible Pump

Overview of Dab 7.5 HP Submersible Sewage Pump FKV 100 55.4 T5 400Y/D

The FKV 100 55.4 T5 400Y/D industrial 7.5 HP pump from Dab is designed for heavy-duty applications involving solids and liquids. Its vortex impeller efficiently handles solids up to 100 mm, making this FKV series pumping solution more than suitable for wastewater, sewage, and slurry pumping. The pump’s construction with cast iron ensures durability, while the advanced mechanical seals provide long-lasting performance. Suitable for submerged installation up to 20 meters deep, it offers high flow rates and sufficient head for various industrial processes. Its compatibility with a wide pH range and temperature makes it versatile for different fluid types. Overall, this pump combines power, reliability, and efficiency for demanding environments.

Dab 7.5 HP Submersible Sewage Pump FKV 100 55.4 T5 400Y/D Specifications

This pump features a vortex impeller made of cast iron, designed for efficient handling of solids ranging from 65 to 100 mm. Best suited for operation within a fluid pH range of 6.5 to 12, the presented Dab sewage pump can handle fluid temperatures from 0°C up to 40°C. The maximum installation depth is 20 meters, making it suitable for various submerged applications. The pump is equipped with a SiC/SiC mechanical seal on the pump side and SiC/Carbon on the motor side, ensuring durability and reliable sealing. It can deliver a maximum head of 15.9 meters and a flow rate up to 2160 liters per minute. Powered by a 400V three-phase supply, this Dab submersible pump consumes 5.5 kW or 7.5 HP, and weighs approximately 220 kg, indicating a robust build for demanding tasks.

Dab 7.5 HP Submersible Sewage Pump FKV 100 55.4 T5 400Y/D

Specification	Value
Impeller Type	Vortex
Solid Handling	65 – 100 mm
Fluid pH	6.5- 12
Fluid Temperature Range	from 0° to +40°C
Max installation Depth	20 m
Impeller Material	cast iron
Mechanical seal pump side	SiC/SiC
Mechanical seal motor side	SiC/Carbon
Max delivery head	15.9 m
Max flow rate	2160 l/min
Three-phase voltage	400 V
Power	5.5 kW
Power (HP)	7.5 HP
Weight	220 kg

Dab 7.5 HP Submersible Sewage Pump FKV 100 55.4 T5 400Y/D Performance Data

m3 /h	0	14.4	28.8	43.2	57.6	72	86.4	100.8	115.2	129.6
l/min	0	240	480	720	960	1200	1440	1680	1920	2160
Head (m)	15.9	15.6	14.9	13.8	12.6	11.1	9.6	8	6.5	5

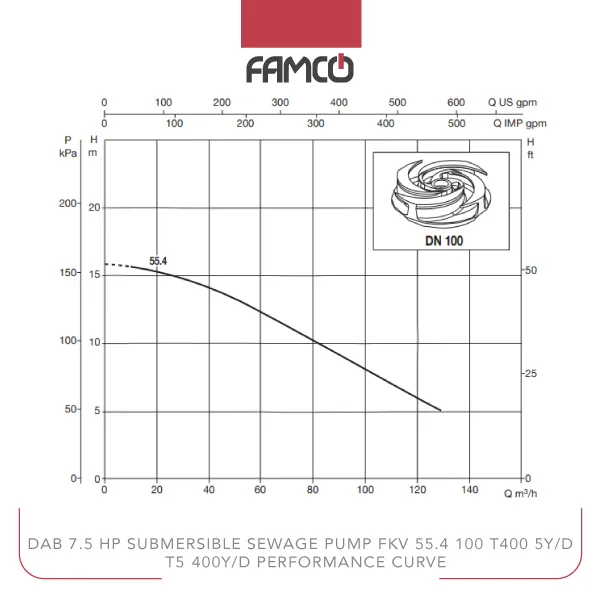

Dab 7.5 HP Submersible Sewage Pump FKV 100 55.4 T5 400Y/D Performance Curve

Dab 7.5 HP Submersible Sewage Pump FKV 100 55.4 T5 400Y/D Applications

Wastewater and sewage pumping
Industrial slurry transfer
Flood control and drainage
Chemical and fluid transfer in factories

Dab 7.5 HP Submersible Sewage Pump FKV 100 55.4 T5 400Y/D Benefits

Handles large solids efficiently
Durable cast iron construction
Reliable sealing with SiC/SiC seals
High flow rate and head for demanding tasks

Dab 7.5 HP Submersible Sewage Pump FKV 100 55.4 T5 400Y/D Price List

No.	Name	Price
1	Dab 7.5 HP Submersible Sewage Pump FKV 100 55.4 T5 400Y/D Price	Contact us

Brand	Dab
Applications	Industrial areas, Sewage management, Wastewater management
Power (kW)	5.5
Power (HP)	7.5
Maximum Flow Rate (L/min)	2160
Maximum Delivery Head (m)	15.9
Impeller Material	Cast Iron
