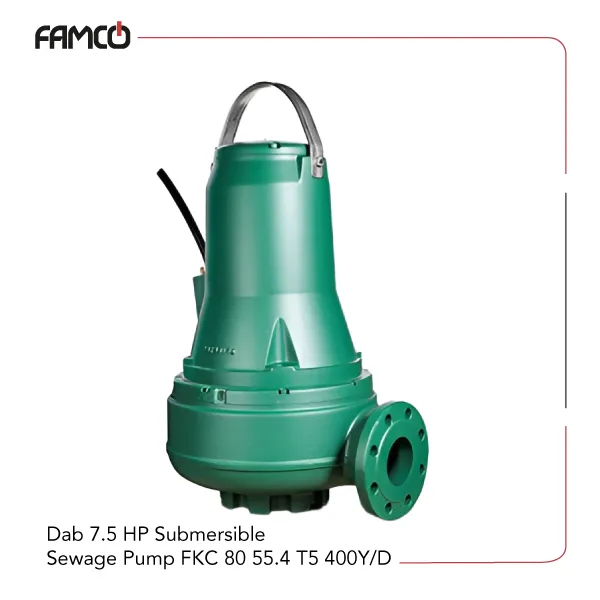

Dab 7.5 HP Submersible Sewage Pump FKC 80 55.4 T5 400Y/D Specifications
This pump features a single channel impeller made of durable cast iron, suitable for handling solids between 65 and 100 mm. It operates efficiently within a pH range of 6.5 to 12 and can manage fluid temperatures from 0°C up to 40°C. The maximum installation depth is 20 meters, making it ideal for deep water applications. The mechanical seals are made of SiC/SiC on the pump side and SiC/Carbon on the motor side, ensuring long-lasting performance and reliability. It can deliver a maximum head of 20.8 meters and a flow rate up to 3120 liters per minute. Powered by a 400V three-phase supply, this Dab submersible pump consumes 5.5 kW (7.5 HP). The Dab sewage pump , FKC series, weighs 231 kg, indicating a robust build suitable for industrial use.
| Specification | Value |
| Impeller Type | Single channel |
| Solid Handling | 65 – 100 mm |
| Fluid pH | 6.5- 12 |
| Fluid Temperature Range | from 0° to +40°C |
| Max installation Depth | 20 m |
| Impeller Material | cast iron |
| Mechanical seal pump side | SiC/SiC |
| Mechanical seal motor side | SiC/Carbon |
| Max delivery head | 20.8 m |
| Max flow rate | 3120 l/min |
| Three-phase voltage | 400 V |
| Power | 5.5 kW |
| Power (HP) | 7.5 HP |
| Weight | 231 kg |
Dab 7.5 HP Submersible Sewage Pump FKC 80 55.4 T5 400Y/D Performance Data
| m3 /h | 0 | 14 | 29 | 43 | 58 | 72 | 86 | 101 | 115 | 130 | 144 | 158 | 173 | 187 |
| l/min | 0 | 240 | 480 | 720 | 960 | 1200 | 1440 | 1680 | 1920 | 2160 | 2400 | 2640 | 2880 | 3120 |
| Head (m) | 20.8 | 19.1 | 17.6 | 16.2 | 14.9 | 13.7 | 12.7 | 11.6 | 10.6 | 9.7 | 8.7 | 7.6 | 6.6 | 5.4 |
Dab 7.5 HP Submersible Sewage Pump FKC 80 55.4 T5 400Y/D Applications
- Water transfer in industrial plants
- Sewage and wastewater management
- Flood control and drainage systems
- Irrigation and agricultural use
Dab 7.5 HP Submersible Sewage Pump FKC 80 55.4 T5 400Y/D Benefits
- High solid handling capacity for tough debris
- Durable cast iron construction for longevity
- Efficient performance with high flow and head
- Reliable mechanical seals for long-term use
Dab 7.5 HP Submersible Sewage Pump FKC 80 55.4 T5 400Y/D Price List
| No. | Name | Price |
| 1 | Dab 7.5 HP Submersible Sewage Pump FKC 80 55.4 T5 400Y/D Price | Contact us |
There are no reviews yet.
