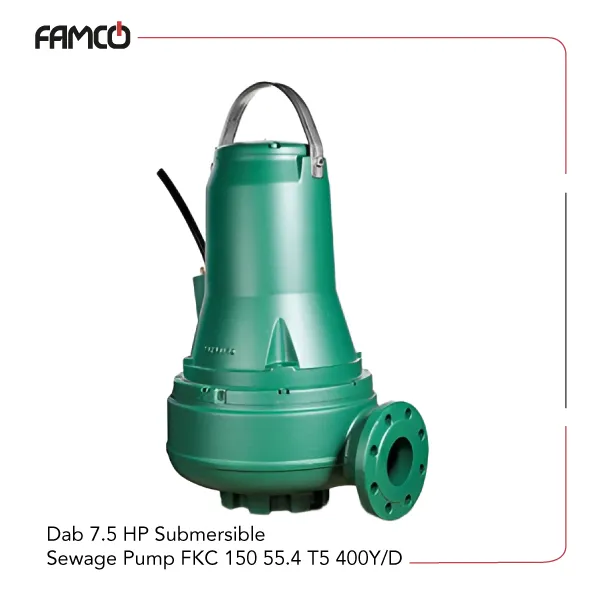

Dab 7.5 HP Submersible Sewage Pump FKC 150 55.4 T5 400Y/D Specifications
This Dab submersible pump is equipped with a cast iron single-channel impeller that efficiently handles solids up to 100 mm, making it a reliable choice for sewage and wastewater tasks. The Dab sewage pump operates within a pH range of 6.5 to 12 and fluid temperatures from 0°C to 40°C. It can be installed at depths of up to 20 meters and features mechanical seals made of SiC/SiC on the pump side and SiC/Carbon on the motor side for long-lasting performance. With a maximum head of 16 meters and a flow rate of 4680 liters per minute, this pump runs on a 7.5 HP (5.5 kW), 400 V three-phase motor and weighs 235 kg, built for tough and demanding environments.
| Specification | Value |
| Impeller Type | Single channel |
| Solid Handling | 65 – 100 mm |
| Fluid pH | 6.5- 12 |
| Fluid Temperature Range | from 0° to +40°C |
| Max installation Depth | 20 m |
| Impeller Material | cast iron |
| Mechanical seal pump side | SiC/SiC |
| Mechanical seal motor side | SiC/Carbon |
| Max delivery head | 16 m |
| Max flow rate | 4680 l/min |
| Three-phase voltage | 400 V |
| Power | 5.5 kW |
| Power (HP) | 7.5 HP |
| Weight | 235 kg |

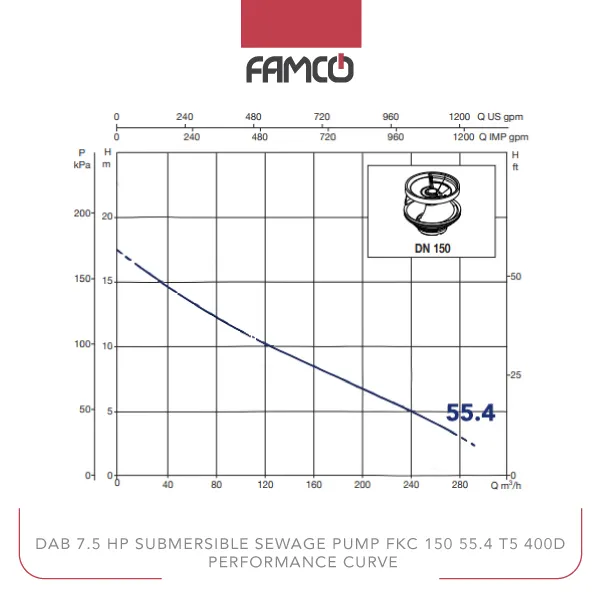

Dab 7.5 HP Submersible Sewage Pump FKC 150 55.4 T5 400Y/D Performance Data
| m3 /h | 0 | 22 | 43 | 65 | 86 | 108 | 130 | 151 | 173 | 194 | 216 | 238 | 259 | 281 |
| l/min | 0 | 360 | 720 | 1080 | 1440 | 1800 | 2160 | 2520 | 2880 | 3240 | 3600 | 3960 | 4320 | 4680 |
| Head (m) | 16 | 14.8 | 13.7 | 12.5 | 11.4 | 10.3 | 9.2 | 8.2 | 7.1 | 6.1 | 5.1 | 4.2 | 3.2 | 2.3 |
Dab 7.5 HP Submersible Sewage Pump FKC 150 55.4 T5 400Y/D Applications
- Industrial wastewater management
- Sewage and drainage systems
- Flood control and water transfer
- Construction site dewatering
Dab 7.5 HP Submersible Sewage Pump FKC 150 55.4 T5 400Y/D Benefits
- Handles solids up to 100 mm efficiently
- Durable cast iron construction for longevity
- High flow rate suitable for large projects
- Reliable operation with high-quality seals
Dab 7.5 HP Submersible Sewage Pump FKC 150 55.4 T5 400Y/D Price List
| No. | Name | Price |
| 1 | Dab 7.5 HP Submersible Sewage Pump FKC 150 55.4 T5 400Y/D Price | Contact us |
