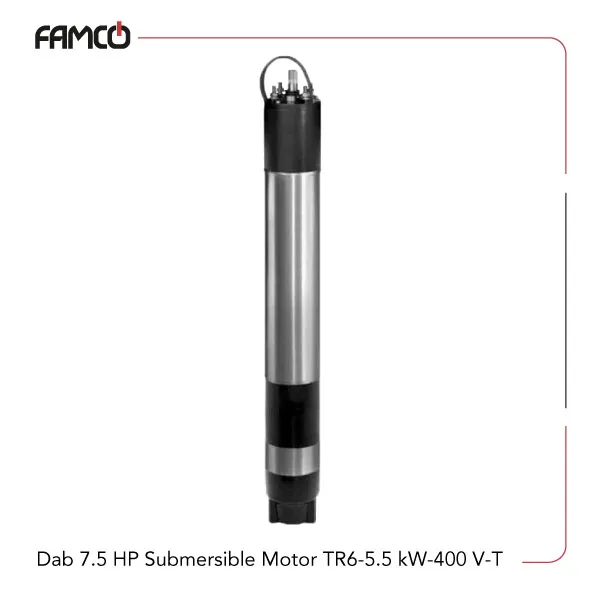

Dab 7.5 HP Submersible Motor TR6-5.5 kW-400 V-T Specifications
Dab 7.5 HP submersible motor TR6-5.5 kW-400 V-T provides 5.5 kW of power, equal to 7.5 HP. It operates at 3000 rpm and draws 13 amperes. The starting current ratio of 3.7 indicates a moderate surge at startup. During operation, the motor consumes 7,432 watts. This Dab submersible motor is equipped with a NEMA 6″ flanging, allowing straightforward mounting and compatibility with standard equipment. With an IP68 protection rating, the motor offers a high level of resistance to dust and water. Cooling is supported by a flow speed of 0.5 meters per second to help manage heat during continuous use. The motor can handle power supply variations from +6% to -10% and supports up to 15 starts per hour, making it appropriate for setups requiring frequent restarts. Designed for underwater and deep-well conditions, it can operate at depths up to 300 meters and withstand pressures of up to 60 bar.
| Specification | Value |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Current (A) | 13 |
| Starting Current Ratio | 3.7 |
| P1 (W) | 7432 |
| Speed (rpm) | 3000 |
| Flanging | NEMA 6″ |
| Protection Class | IP68 |
| Cooling Flow Speed (m/s) | 0.5 |
| Power Supply Tolerance | +6%/-10% |
| Max Starts | 15/h |
| Max Operating Depth (m) | 300 |
| Max Operating Temperature (bar) | 60 |
| Horizontal Operation | 7.5 HP – 50 HP |
Dab 7.5 HP Submersible Motor TR6-5.5 kW-400 V-T Applications
- Water pumping systems
- Industrial manufacturing equipment
- Deep well and underwater applications
- Heavy-duty machinery operation
Dab 7.5 HP Submersible Motor TR6-5.5 kW-400 V-T Benefits
- High durability with IP68 protection
- Reliable performance at various depths and pressures
- Suitable for continuous and demanding use
- Easy installation with standard flanging
Dab 7.5 HP Submersible Motor TR6-5.5 kW-400 V-T Price List
| No. | Name | Price |
| 1 | Dab 7.5 HP Submersible Motor TR6-5.5 kW-400 V-T Price | Contact us |
