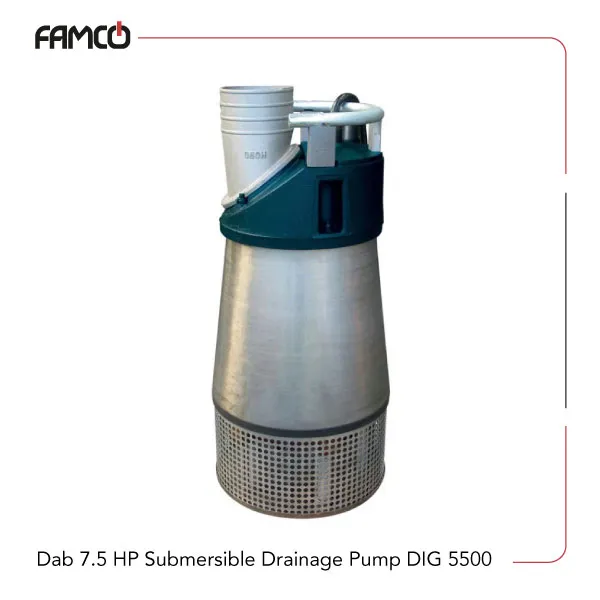

Dab 7.5 HP Submersible Drainage Pump DIG 5500

Dab 7.5 HP Submersible Drainage Pump DIG 5500 Specifications

This three-phase pump is equipped with a 7.5 HP motor (5.5 kW) and supports a maximum P1 input of 7.0 kW, or 5.4 kW for the MPT version. Designed for use with a 400-volt supply, it performs well across a broad range of operating conditions. Depending on the model, the pump delivers a maximum flow rate between 84 m³/h and 132 m³/h, equivalent to 1,400 to 2,200 liters per minute. The APT model provides a maximum head of 41.6 meters, while the MPT version offers up to 20 meters, giving users flexibility depending on their vertical lift requirements. This Dab drainage pump weighs 96 kilograms and is compatible with 3-inch pipes on the APT model and 4-inch pipes on the MPT version. It can operate with liquid temperatures from 0°C to 35°C and may be submerged to a depth of up to 20 meters, provided the cable length is suitable. The motor carries an IP68 protection rating for full protection under water and is built with insulation class F, offering solid thermal performance and operational safety. This combination makes the pump well-suited for demanding fluid-handling tasks in a range of settings.

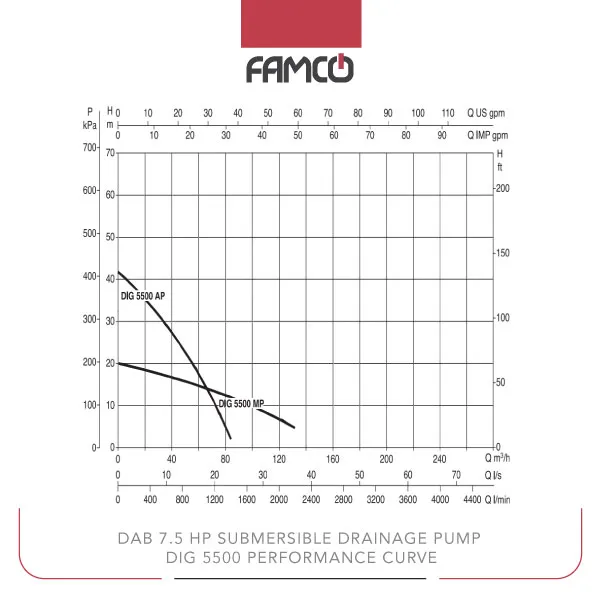

Dab 7.5 HP Submersible Drainage Pump DIG 5500 Performance Curve

Dab 7.5 HP Submersible Drainage Pump DIG 5500 Applications

• Water transfer in industrial plants
• Drainage and sewage systems
• Irrigation in agriculture
• Deep well water extraction

Dab 7.5 HP Submersible Drainage Pump DIG 5500 Benefits

• High flow capacity for efficient fluid transfer
• Robust construction with IP 68 protection
• Suitable for deep immersion up to 20 meters
• Versatile for different liquid temperatures and pipe sizes

Dab 7.5 HP Submersible Drainage Pump DIG 5500 Price List
