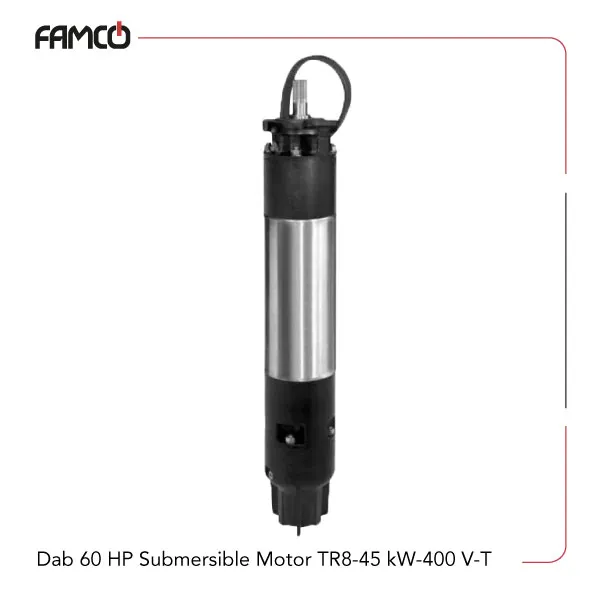

Dab 60 HP Submersible Motor TR8-45 kW-400 V-T Specifications
This industrial motor delivers 45 kW (60 HP) of power and operates at 3000 rpm. It draws 92 amperes and has a starting current ratio of 6, allowing it to handle up to 10 starts per hour. During operation, its power consumption (P1) is approximately 52,326 watts. This Dab submersible motor is equipped with a standard NEMA 8″ flange for straightforward mounting and installation. It carries an IP58 protection rating, with an optional IP68 version available for environments that require higher resistance to dust and water. Cooling is supported by a flow speed of 0.5 meters per second, helping maintain stable temperatures during continuous use. It can accommodate power supply variations from +6% to -10%, making it suitable for sites with fluctuating electrical conditions. Designed for underwater and high-pressure environments, the motor can operate at depths up to 300 meters and withstand pressures up to 60 bar.
| Specification | Value |
| Power (kW) | 45 |
| Power(HP) | 60 |
| Current (A) | 92 |
| Starting Current Ratio | 6 |
| P1 (W) | 52326 |
| Speed (rpm) | 3000 |
| Flanging | NEMA 8″ |
| Protection Class | IP58 (IP68 on request) |
| Cooling Flow Speed (m/s) | 0.5 |
| Power Supply Tolerance | +6%/-10% |
| Max Starts | 10/h |
| Max Operating Depth (m) | 300 |
| Max Operating Temperature (bar) | 60 |
| Horizontal Operation | 30 HP – 125 HP |
Dab 60 HP Submersible Motor TR8-45 kW-400 V-T Applications
- Industrial manufacturing machinery
- Water and wastewater treatment plants
- Underwater pumping systems
- High-temperature industrial processes
Dab 60 HP Submersible Motor TR8-45 kW-400 V-T Benefits
- High power output for demanding tasks
- Excellent protection against dust and water
- Reliable operation with frequent startups
- Versatile for various industrial environments
Dab 60 HP Submersible Motor TR8-45 kW-400 V-T Price List
| No. | Name | Price |
| 1 | Dab 60 HP Submersible Motor TR8-45 kW-400 V-T Price | Contact us |
There are no reviews yet.
