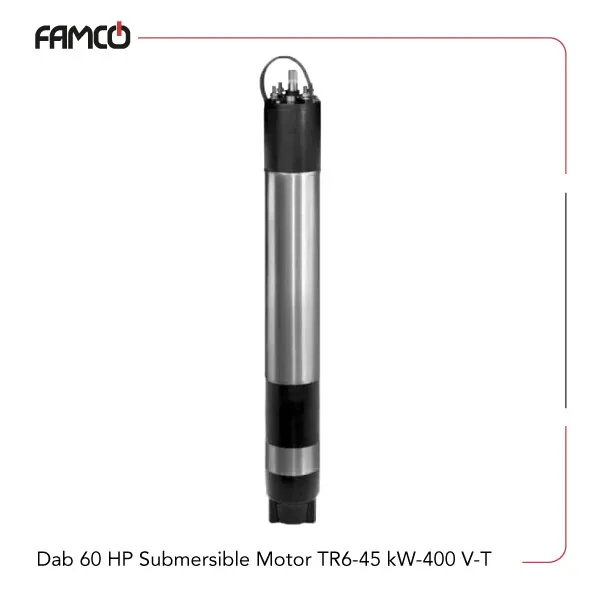

Dab 60 HP Submersible Motor TR6-45 kW-400 V-T Specifications
Dab submersible motor TR6-45 kW-400 V-T features a 45 kW (60 HP) motor engineered for demanding environments. It operates at 3000 rpm and draws 93.1 amperes. The starting current ratio of 5.1 allows smooth startup, and the motor consumes approximately 54,127 watts during operation, making it suitable for heavy-duty applications. This Dab motor includes a NEMA 6-inch flanging for secure, standardized mounting and carries an IP68 protection rating, providing strong resistance to dust and water ingress. Cooling is maintained with a flow speed of 0.5 meters per second, supporting efficient heat dissipation during continuous use. It accommodates power supply variations of +6% to –10% and supports up to 15 starts per hour. The motor is designed for underwater operation at depths up to 300 meters and can withstand pressures up to 60 bar.
| Specification | Value |
| Power (kW) | 45 |
| Power (HP) | 60 |
| Current (A) | 93.1 |
| Starting Current Ratio | 5.1 |
| P1(W) | 54127 |
| Speed (rpm) | 3000 |
| Flanging | NEMA 6″ |
| Protection Class | IP68 |
| Cooling Flow Speed (m/s) | 0.5 |
| Power Supply Tolerance | +6%/-10% |
| Max Starts (/h) | 15 |
| Max Operating Depth (m) | 300 |
| Max Operating Temperature (bar) | 60 |
| Horizontal Operation (HP) | 7.5-50 |
Dab 60 HP Submersible Motor TR6-45 kW-400 V-T Applications
- Deep-sea water pumping
- Industrial manufacturing processes
- Water treatment facilities
- Heavy-duty machinery operation
Dab 60 HP Submersible Motor TR6-45 kW-400 V-T Benefits
- High power output for demanding tasks
- Excellent water and dust resistance (IP68)
- Reliable performance with multiple starts per hour
- Versatile operation at different depths and temperatures
Dab 60 HP Submersible Motor TR6-45 kW-400 V-T Price List
| No. | Name | Price |
| 1 | Dab 60 HP Submersible Motor TR6-45 kW-400 V-T Price | Contact us |
