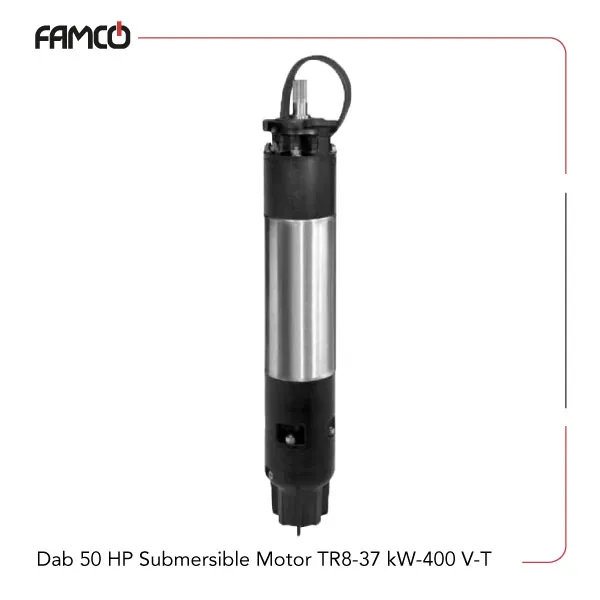

Dab 50 HP Submersible Motor TR8-37 kW-400 V-T Specifications
This product features a powerful 37 kW (50 HP) motor that delivers reliable performance for various industrial applications. It operates at a speed of 3000 rpm, ensuring efficient operation. The device draws a current of 75 amperes and has a starting current ratio of 5.7, making it suitable for demanding environments. Its power consumption at P1 is 44048 watts, indicating high efficiency. The flanging size is NEMA 8″, compatible with standard fittings. It boasts a protection class of IP58, with an option for IP68 upon request, providing excellent resistance against dust and water ingress. The cooling system maintains a flow speed of 0.5 meters per second, ensuring optimal temperature regulation during operation. The power supply tolerance is set at +6%/-10%, allowing flexibility in power input. It can be started up to 10 times per hour, suitable for applications requiring frequent startups. This Dab submersible pump can operate at depths up to 300 meters and withstand temperatures up to 60 bar, making it ideal for deep-sea or high-pressure environments. It is designed for horizontal operation within the range of 30 HP to 125 HP, suitable for various industrial machinery and equipment.
| Specification | Value |
| Power (kW) | 37 |
| Power (HP) | 50 |
| Current (A) | 75 |
| Starting Current Ratio | 5.7 |
| P1 (W) | 44048 |
| Speed (rpm) | 3000 |
| Flanging | NEMA 8″ |
| Protection Class | IP58(IP68 on request) |
| Cooling Flow Speed (m/s) | 0.5 |
| Power Supply Tolerance | +6%/-10% |
| MaxStarts | 10/h |
| Max Operating Depth(m) | 300 |
| Max Operating Temperature (bar) | 60 |
| Horizontal Operation | 30 HP – 125 HP |
Dab 50 HP Submersible Motor TR8-37 kW-400 V-T Applications
- Deep-sea exploration equipment
- Industrial pumping systems
- High-pressure water systems
- Heavy-duty manufacturing machinery
Dab 50 HP Submersible Motor TR8-37 kW-400 V-T Benefits
- High efficiency with low energy consumption
- Excellent protection against dust and water
- Suitable for deep and high-pressure environments
- Supports frequent startups for continuous operation
Dab 50 HP Submersible Motor TR8-37 kW-400 V-T Price List
| No. | Name | Price |
| 1 | Dab 50 HP Submersible Motor TR8-37 kW-400 V-T Price | Contact us |
