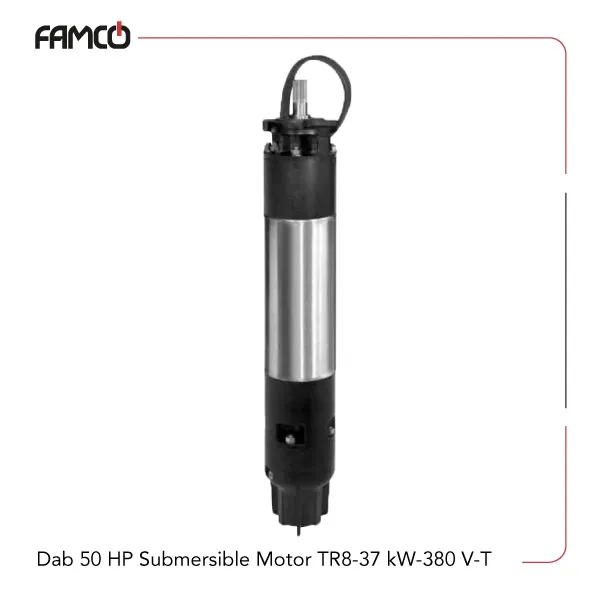

Dab 50 HP Rewindable Submersible Electric Motor TR8-37 kW-380 V-T Specifications
Dab submersible motor TR8-37 kW-380 V-T comes with a 37 kW (50 HP) motor, built for demanding industrial and marine applications. It draws 81 amperes and has a starting current ratio of 4.5, allowing smooth startup. During operation, it consumes approximately 45,122 watts. This Dab submersible motor features a NEMA 8″ flange for secure and easy mounting. It carries an IP58 protection rating, with an optional IP68 upgrade for environments requiring extra dust and water protection. The cooling system maintains a flow speed of 0.5 meters per second, helping to prevent overheating during extended use. It can handle power supply fluctuations of +6% to -10% and supports up to 10 starts per hour, making it suitable for applications that require frequent restarts. Designed for operation at depths up to 300 meters and pressures up to 60 bar, it is ideal for underwater or deep-sea environments.
| Specification | Value |
| Power (kW) | 37 |
| Power (HP) | 50 |
| Current (A) | 81 |
| Starting Current Ratio | 4.5 |
| P1 (W) | 45122 |
| Flanging | NEMA 8″ |
| Protection class | IP58 (IP68 on request) |
| Cooling flow speed | 0.5 m/s |
| Power supply tolerance | +6%/-10% |
| Max. starts | 10/h |
| Max. operating depth | 300 m |
| Max. operating temperature | 60 bar |
| Horizontal operation | 30 HP – 125 HP |
Dab 50 HP Submersible Motor TR8-37 kW-380 V-T Applications
- Underwater pumping systems
- Marine equipment and vessels
- Industrial machinery requiring high power
- Deep-sea exploration devices
Dab 50 HP Submersible Motor TR8-37 kW-380 V-T Benefits
- High power output for demanding tasks
- Excellent water and dust resistance
- Flexible installation options
- Reliable performance at great depths
Dab 50 HP Submersible Motor TR8-37 kW-380 V-T Price List
| No. | Name | Price |
| 1 | Dab 50 HP Submersible Motor TR8-37 kW-380 V-T Price | Contact us |
