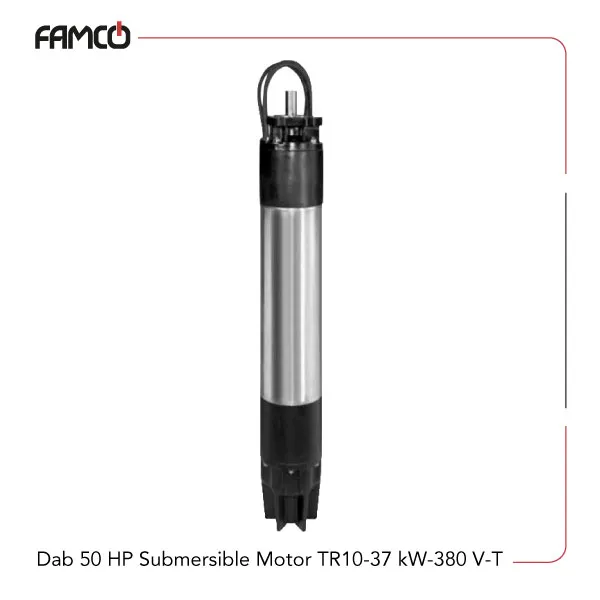

Dab 50 HP Submersible Motor TR10-37 kW-380 V-T Specifications
Dab 50 HP submersible motor TR10-37 kW-380 V-T delivers a strong power output of 37 kW (50 HP), making it well suited for demanding operating environments. It runs at 1500 rpm and draws 75 amperes, providing reliable performance under continuous or variable loads. This Dab motor is equipped with a 10-inch flanging system, ensuring compatibility with a wide range of machinery and installation configurations. It carries an IP58 protection rating, with an optional upgrade to IP68 for applications requiring enhanced resistance to dust and water ingress. Cooling is supported by a flow speed of 0.5 meters per second, enabling effective heat dissipation during extended operation. The power supply tolerance of +6% to -10% allows for stable performance under moderate voltage fluctuations. The motor can be started up to eight times per hour, making it suitable for applications requiring frequent starts. Designed for submersible and high-pressure environments, it is capable of operating at depths up to 300 meters and can withstand pressures of up to 60 bar.
| Specification | Value |
| Power (kW) | 37 |
| Power (HP) | 50 |
| Current (A) | 75 |
| Starting Current Ratio | 5.5 |
| P1 (W) | 43023 |
| Speed (rpm) | 1500 |
| Flanging | 10″ |
| Protection class | IP58 (IP68 on request) |
| Cooling flow speed | 0.5 m/s |
| Power supply tolerance | +6%/-10% |
| Max. starts | 8/h |
| Max operating depth | 300 m |
| Max operating temperature | 60 bar |
| Horizontal operation | 100 HP-230 HP |
Dab 50 HP Submersible Motor TR10-37 kW-380 V-T Applications
- Industrial machinery operation
- Marine and underwater equipment
- Deep-sea exploration tools
- Heavy-duty manufacturing processes
Dab 50 HP Submersible Motor TR10-37 kW-380 V-T Benefits
- High power output for demanding tasks
- Excellent protection against dust and water
- Durable construction for harsh environments
- Flexible operation with various load capacities
Dab 50 HP Submersible Motor TR10-37 kW-380 V-T Price List
| No. | Name | Price |
| 1 | Dab 50 HP Submersible Motor TR10-37 kW-380 V-T Price | Contact us |
