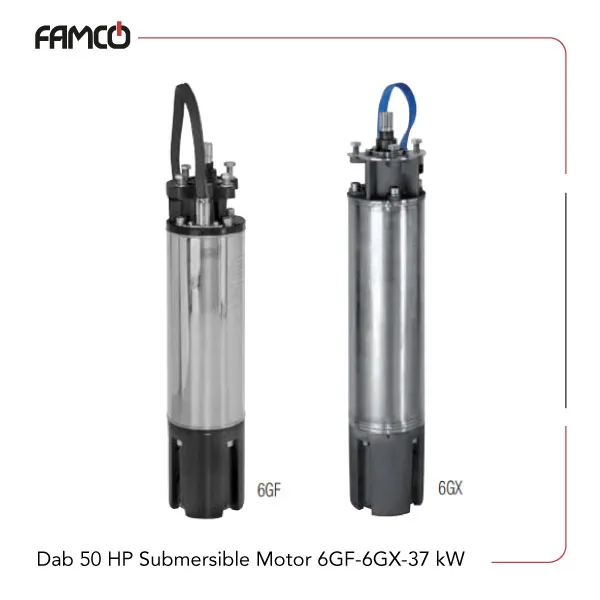

Dab 50 HP Submersible Motor 6GF/6GX-37 kW Specifications
This motor offers a robust power output of 37 kW (50 HP), making it suitable for demanding industrial applications. It operates at a speed of 3000 rpm and has a high starting current ratio of 3.7, ensuring reliable startup performance. The motor’s insulation class is F, providing good thermal resistance, while its protection class is IP68, making it highly resistant to dust and water ingress. It features a NEMA 6″ flanging for secure mounting and is designed to operate efficiently with a cooling flow speed of at least 0.3 meters per second at 35°C. The power supply tolerance allows for a variation of +6%/-10%, ensuring stable operation under different power conditions. With a maximum of 25 starts per hour, it is suitable for applications requiring frequent startups. The motor can operate at depths up to 300 meters and is suitable for horizontal operation within the range of 5.5 HP to 50 HP, making it versatile for various industrial and underwater uses.
| Model | 400V | 415V |
| Current (A) | 79.3 | 80 |
| Starting Current Ratio | 3.7 | 3.9 |
| Power (kW) | 37 | |
| Power (HP) | 50 | |
| P1 (W) | 44200 | |
| Speed (rpm) | 3000 | |
| Flanging | NEMA 6″ | |
| Insulation Class | F | |
| Protection Class | IP68 | |
| Cooling Flow Speed | min.0.3 m/s 35°C | |
| Power Supply Tolerance | +6%/-10% | |
| Max Starts | 25/h | |
| Max Operating Depth | 300 m | |
| Horizontal Operation | 5.5 HP-50 HP | |
Dab 50 HP Submersible Motor 6GF/6GX-37 kW Applications
- Industrial machinery operation
- Underwater equipment and submersibles
- Heavy-duty pumps and compressors
- Marine and offshore projects
Dab 50 HP Submersible Motor 6GF/6GX-37 kW Benefits
- High durability with IP68 protection
- Reliable startup with a high starting current ratio
- Suitable for deep-sea applications up to 300 meters
- Flexible operation with multiple power and speed options
Dab 50 HP Submersible Motor 6GF/6GX-37 kW Price List
| No. | Name | Price |
| 1 | Dab 50 HP Submersible Motor 6GF/6GX-37 kW Price | Contact us |
