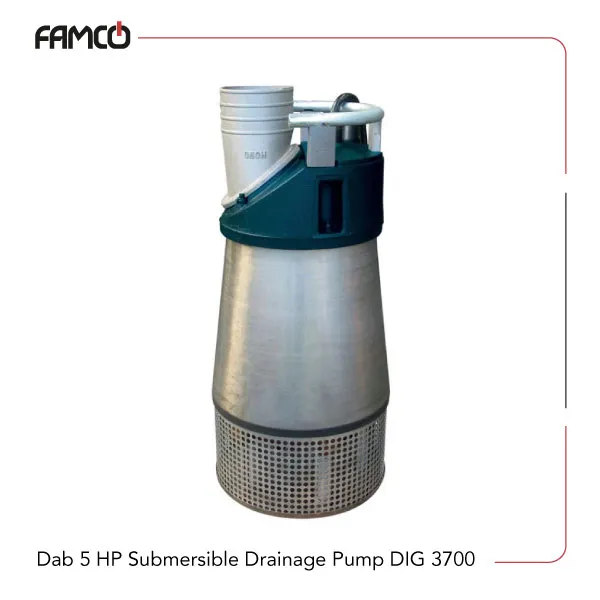

Dab 5 HP Submersible Drainage Pump DIG 3700

3.7 kW (5 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Categories: Submersible Pump, Drainage Pump Tags: Dab Drainage Pumps, DAB Pumps, Dab Submersible Pump

Overview of Dab 5 HP Submersible Drainage Pump DIG 3700

Dab 5 HP submersible drainage pump DIG 3700 is designed for operations that call for steady output and consistent performance. It delivers a Maximum Flow rate (m3/h): 54, giving it the capacity to handle demanding movement of water in settings such as farms, commercial facilities, and larger household systems. Built as a Three-phase unit, it integrates smoothly into setups that require balanced power distribution and stable operation over long periods. With a Power (HP): 5 and Power (kW): 3.7, it offers the kind of strength needed for continuous workload without feeling oversized for its class. This model is provided in two versions as mentioned below:

Dab 5 HP Submersible Drainage Pump DIG 3700 AP T
Dab 5 HP Submersible Drainage Pump DIG 3700 MP T

Description
Additional information

Dab 5 HP Submersible Drainage Pump DIG 3700 Specifications

Dab 5 HP submersible drainage pump DIG 3700 operates with a power of 5 HP (3.7 kW) and requires a voltage of 400V. It draws a current of 7.7A (7.8A for MPT) during operation. The pump can handle a maximum flow rate of 54 cubic meters per hour, which is equivalent to 900 liters per minute. It can generate a maximum head of 32.5 meters, making it suitable for various lifting and transfer tasks. The device weighs 90 kilograms and features a pipe diameter of 3 inches for efficient fluid movement. This Dab drainage pump is designed to work within a liquid temperature range of 0 to 35 degrees Celsius, ensuring versatility in different environments. The maximum immersion depth for this pump is 20 meters, provided the cable length is appropriate. Its motor protection class is IP 68, offering excellent protection against dust and water ingress, while the insulation class is F, indicating high-quality insulation suitable for demanding applications.

Specification	APT	MPT
P1 (kW)	4.2	4.3
Current (A)	7.7	7.8
Pipe (DNM)	3”	4”
Maximum Flow rate (m3/h)	54
Number of phases	Three-phase
Power (HP)	5
Power (kW)	3.7
Maximum Flow rate (l/min)	900
Maximum head (m)	32.5
Weight (kg)	90
Voltage (V)	400
Liquid temperature range	0 °C to 35 °C
Maximum immersion depth	20 metres
Motor protection class	IP 68
Insulation class	F

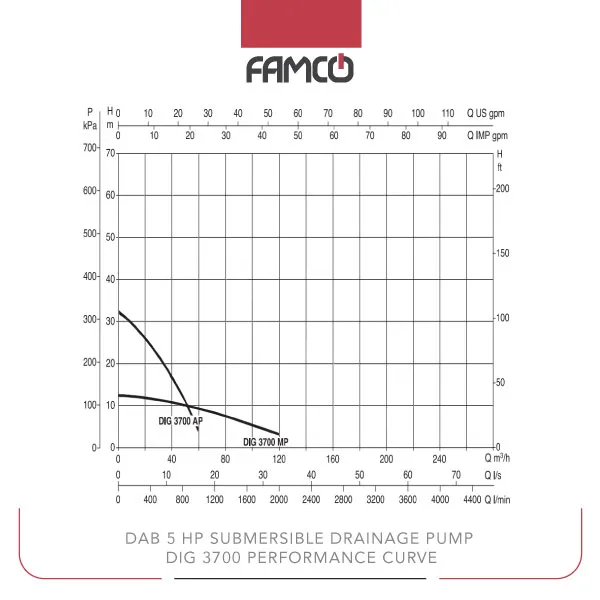

Dab 5 HP Submersible Drainage Pump DIG 3700 Performance Data

Q (m3/h)	0	12	18	24	30	36	42	48	54
Q (l/min)	0	200	300	400	500	600	700	800	900
H (m)	32.5	29	27.3	25	23.2	20.1	17.5	14.8	12.3

Dab 5 HP Submersible Drainage Pump DIG 3700 Applications

Water transfer in industrial settings
Irrigation in agriculture
Drainage and flood control
Deep well pumping

Dab 5 HP Submersible Drainage Pump DIG 3700 Benefits

High flow rate and powerful performance
Durable and reliable construction
Excellent protection against dust and water
Suitable for deep immersion and various temperatures

Dab 5 HP Submersible Drainage Pump DIG 3700 Price List

No.	Name	Price
1	Dab 5 HP Submersible Drainage Pump DIG 3700 Price	Contact us

Brand	Dab
Power (kW)	3.7
Power (HP)	5
Maximum Flow Rate (L/min)	900
Current (A)	7.7, 7.8
Number of Phases	Three-phase
Voltage (V)	400
Maximum Liquid Temperature (°C)	35
Maximum Delivery Head (m)	32.5
Weight (kg)	90
