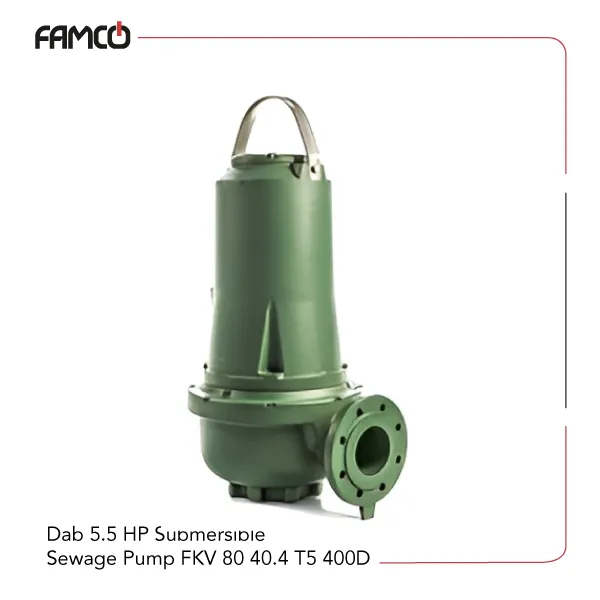

Dab 5.5 HP Submersible Sewage Pump FKV 80 40.4 T5 400D

4 kW (5.5 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Categories: Sewage pump, Submersible Pump Tags: DAB Pumps, Dab Sewage Pumps, Dab Submersible Pump

Overview of Dab 5.5 HP Submersible Sewage Pump FKV 80 40.4 T5 400D

The FKV 80 40.4 T5 400D industrial 5 HP pump is designed for demanding applications where solids are present in the fluid. Its vortex impeller efficiently handles solids up to 100 mm, making it ideal for wastewater, slurry, and other challenging liquids. The pump’s construction with cast iron ensures durability and longevity. It operates within a broad pH range and temperature limits, suitable for various environments. With a maximum head of 17.5 meters and flow capacity of 1440 liters per minute, it provides powerful performance. The pump’s high-quality seals prevent leaks and wear, ensuring reliable operation over time. Its robust build and high efficiency make it a popular choice for industrial, municipal, and agricultural sectors needing dependable fluid transfer solutions.

Dab 5.5 HP Submersible Sewage Pump FKV 80 40.4 T5 400D Specifications

This pump features a vortex impeller made of durable cast iron, designed for efficient handling of solids up to 100 mm. It operates within a fluid pH range of 6.5 to 12 and can manage fluid temperatures from 0°C to 40°C. The pump can be installed at depths up to 20 meters and delivers a maximum head of 17.5 meters with a flow rate of 1440 liters per minute. It uses high-quality SiC/SiC mechanical seals on the pump side and SiC/Carbon on the motor side. The Dab submersible pump runs on a three-phase power supply of 400 volts, consuming 4 kilowatts or 5.5 horsepower. Its weight is approximately 172 kilograms, making this Dab sewage pump a candid choice for applications that require top-performing resutls.

Specification	Value
Impeller Type	Vortex
Solid Handling	65 – 100 mm
Fluid pH	6.5- 12
Fluid Temperature Range	from 0° to +40°C
Max installation Depth	20 m
Impeller Material	cast iron
Mechanical seal pump side	SiC/SiC
Mechanical seal motor side	SiC/Carbon
Max delivery head	17.5 m
Max flow rate	1440 l/min
Three-phase voltage	400 V
Power	4 kW
Power (HP)	5.5 HP
Weight	172 kg

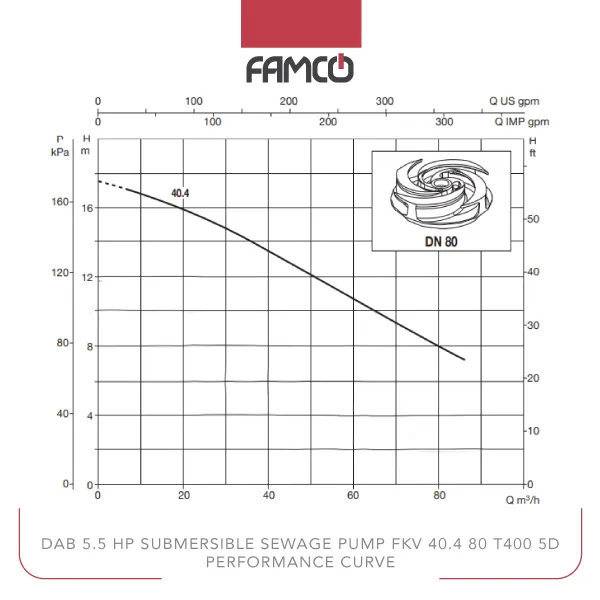

Dab 5.5 HP Submersible Sewage Pump FKV 80 40.4 T5 400D Performance Data

m3 /h	0	7.2	14.4	21.6	28.8	36	43.2	50.4	57.6	64.8	72	79.2	86.4
l/min	0	120	240	360	480	600	720	840	960	1080	1200	1320	1440
Head (m)	17.5	17.1	16.5	15.7	14.9	14	13.1	12.1	11.1	10	9	8.1	7.1

Dab 5.5 HP Submersible Sewage Pump FKV 80 40.4 T5 400D Applications

Wastewater treatment plants
Industrial slurry transfer
Municipal sewage systems
Agricultural irrigation systems

Dab 5.5 HP Submersible Sewage Pump FKV 80 40.4 T5 400D Benefits

Handles solids up to 100 mm efficiently
Durable cast iron construction
Reliable high-performance seals
Suitable for various pH and temperature conditions

Dab 5.5 HP Submersible Sewage Pump FKV 80 40.4 T5 400D Price List

No.	Name	Price
1	Dab 5.5 HP Submersible Sewage Pump FKV 80 40.4 T5 400D Price	Contact us

Brand	Dab
Applications	Industrial, Sewage management, Wastewater management
Power (kW)	4
Power (HP)	5.5
Maximum Delivery Head (m)	17.5
Maximum Flow Rate (L/min)	1440
