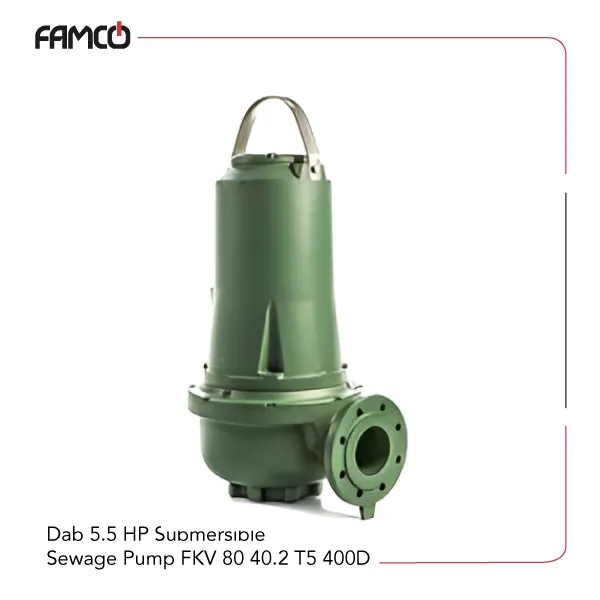

Overview of Dab 5.5 HP Submersible Sewage Pump FKV 80 40.2 T5 400D

The FKV 80 40.2 T5 400D vortex 5.5 HP Dab pump is designed for heavy-duty applications involving solids and liquids. Its cast iron impeller and high-capacity 1200 l/min flow rate make it ideal for wastewater, sewage, and industrial fluid handling. With a maximum head of 22.1 meters and a flow rate of 1200 liters per minute, it efficiently moves large volumes of fluid. The pump’s ability to operate at depths up to 20 meters and handle fluids with a pH range of 6.5 to 12 makes it versatile for various settings. Its durable seals and construction ensure long-term performance even in challenging conditions. Suitable for both residential and industrial use, this pump offers reliable operation with a powerful 4 kW motor, making it a dependable choice for demanding pumping tasks.

Dab 5.5 HP Submersible Sewage Pump FKV 80 40.2 T5 400D Specifications

This pump features a vortex impeller designed for efficient handling of solids ranging from 65 to 100 mm. It operates within a fluid pH range of 6.5 to 12 and can manage fluid temperatures from 0°C up to 40°C. The maximum installation depth is 20 meters, making it suitable for various submerged applications. The impeller is made of durable cast iron, ensuring longevity and resistance to wear. The mechanical seals on this Dab submersible pump are on two sides, the pump side’s are made of SiC/SiC, providing excellent sealing performance, while the motor side uses SiC/Carbon seals for added durability. It can achieve a maximum delivery head of 22.1 meters and a flow rate of up to 1200 liters per minute. Powered by a 400V three-phase supply, this Dab sewage pump‘s power output of 4 kW or 5.5 HP. The pump weighs approximately 148 kg, indicating a robust build suitable for demanding environments.

Specification	Value
Impeller Type	Vortex
Solid Handling	65 – 100 mm
Fluid pH	6.5- 12
Fluid Temperature Range	from 0° to +40°C
Max installation Depth	20 m
Impeller Material	cast iron
Mechanical seal pump side	SiC/SiC
Mechanical seal motor side	SiC/Carbon
Max delivery head	22.1 m
Max flow rate	1200 l/min
Three-phase voltage	400 V
Power	4 kW
Power (HP)	5.5 HP
Weight	148 kg

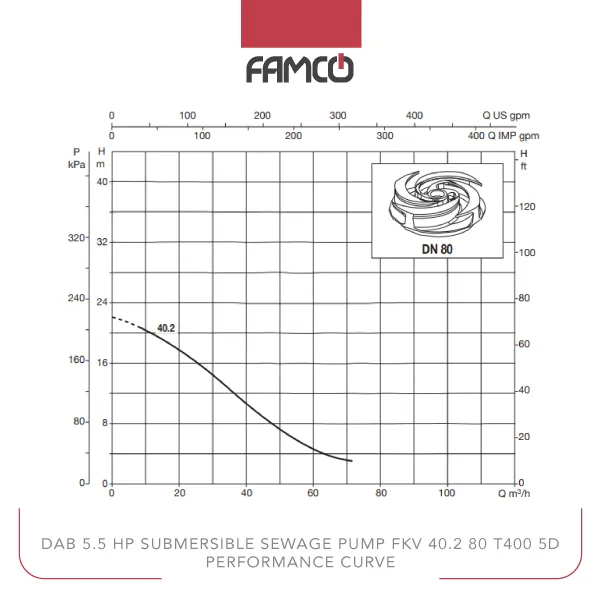

Dab 5.5 HP Submersible Sewage Pump FKV 80 40.2 T5 400D Performance Curve

m3 /h	0	7.2	14.4	21.6	28.8	36	43.2	50.4	57.6	64.8	72
l/min	0	120	240	360	480	600	720	840	960	1080	1200
Head (m)	22.1	21.1	19.5	17.3	14.9	12.2	9.7	7.3	5.2	3.7	2.9

Dab 5.5 HP Submersible Sewage Pump FKV 80 40.2 T5 400D Applications

Wastewater and sewage pumping
Industrial fluid transfer
Flood control and drainage
Construction site dewatering

Dab 5.5 HP Submersible Sewage Pump FKV 80 40.2 T5 400D Benefits

Handles large solids efficiently
Durable cast iron construction
High flow rate for quick fluid movement
Suitable for deep submerged applications

Dab 5.5 HP Submersible Sewage Pump FKV 80 40.2 T5 400D Price List

No.	Name	Price
1	Dab 5.5 HP Submersible Sewage Pump FKV 80 40.2 T5 400D Price	Contact us

Brand	Dab
Applications	Industrial, Sewage management, Wastewater management
Power (kW)	4
Power (HP)	5.5
Maximum Flow Rate (L/min)	1200
Maximum Delivery Head (m)	22.1
Weight (kg)	148
