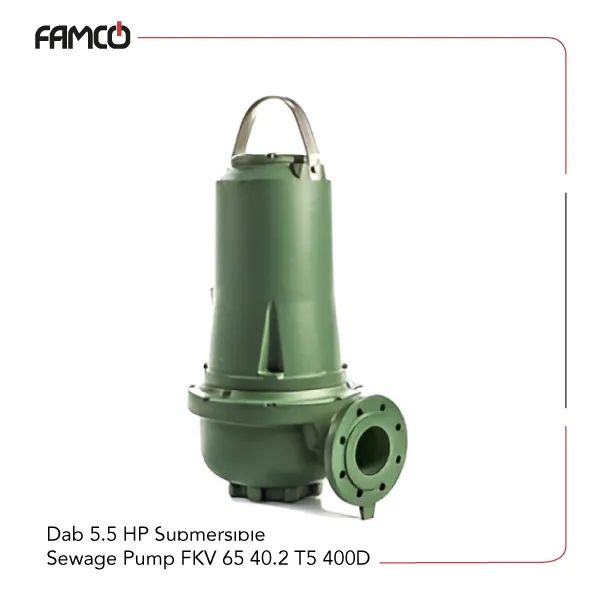

Dab 5.5 HP Submersible Sewage Pump FKV 65 40.2 T5 400D Specifications
This pump features a vortex impeller designed for efficient handling of solids ranging from 65 to 100 mm. It operates within a fluid pH range of 6.5 to 12 and can manage fluid temperatures from 0°C up to 40°C. The maximum installation depth is 20 meters, making this Dab submersible pump the perfect fit for various submerged applications. Constructed with a durable cast iron impeller, it ensures longevity and resistance to wear. The mechanical seals on the pump side are made of SiC/SiC, providing excellent sealing performance, while the motor side uses SiC/Carbon for reliable operation. It can achieve a maximum delivery head of 27.2 meters and a flow rate of up to 1200 liters per minute. Compatible with a 400V three-phase system, this FKV-series Dab sewage pump consumes 4 kW (or 5.5 HP), and weighs approximately 143 kg, indicating a robust and sturdy design suitable for demanding environments.
| Specification | Value |
| Impeller Type | Vortex |
| Solid Handling | 65 – 100 mm |
| Fluid pH | 6.5- 12 |
| Fluid Temperature Range | from 0° to +40°C |
| Max installation Depth | 20 m |
| Impeller Material | cast iron |
| Mechanical seal pump side | SiC/SiC |
| Mechanical seal motor side | SiC/Carbon |
| Max delivery head | 27.2 m |
| Max flow rate | 1200 l/min |
| Three-phase voltage | 400 V |
| Power | 4 kW |
| Power (HP) | 5.5 HP |
| Weight | 143 kg |

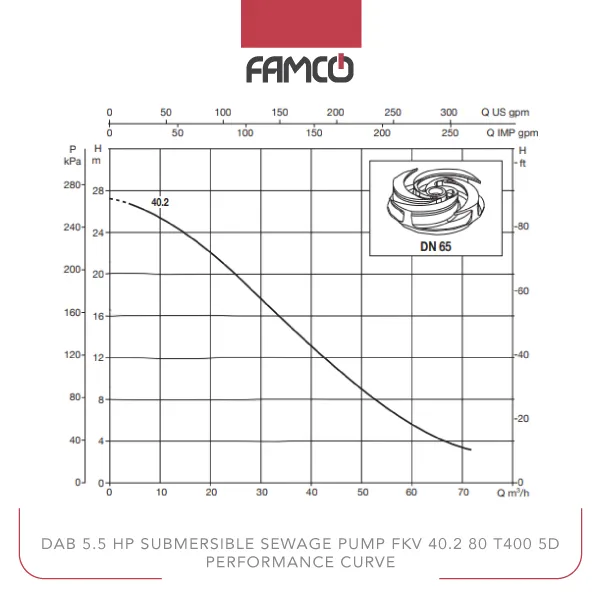

Dab 5.5 HP Submersible Sewage Pump FKV 65 40.2 T5 400D Performance Curve
| m3 /h | 0 | 7.2 | 14.4 | 21.6 | 28.8 | 36 | 43.2 | 50.4 | 57.6 | 64.8 | 72 |
| l/min | 0 | 120 | 240 | 360 | 480 | 600 | 720 | 840 | 960 | 1080 | 1200 |
| Head (m) | 27.2 | 26 | 24 | 21.3 | 18.3 | 15.1 | 11.8 | 8.8 | 6.2 | 4.2 | 3 |
Dab 5.5 HP Submersible Sewage Pump FKV 65 40.2 T5 400D Applications
- Wastewater and sewage pumping
- Industrial fluid transfer
- Municipal water treatment
- Flood control and drainage
Dab 5.5 HP Submersible Sewage Pump FKV 65 40.2 T5 400D Benefits
- Handles large solids efficiently
- Durable cast iron construction
- Reliable mechanical seals for long-term use
- High flow rate and head capacity for versatile applications
Dab 5.5 HP Submersible Sewage Pump FKV 65 40.2 T5 400D Price List
| No. | Name | Price |
| 1 | Dab 5.5 HP Submersible Sewage Pump FKV 65 40.2 T5 400D Price | Contact us |
There are no reviews yet.
