Dab 5.5 HP Submersible Sewage Pump FKV 100 40.4 T5 400D Specifications
This pump features a vortex impeller made of durable cast iron, designed to handle solids between 65 and 100 mm efficiently. It operates within a fluid pH range of 6.5 to 12, making it suitable for various wastewater and industrial applications. The pump can manage fluid temperatures from 0°C up to 40°C, ensuring versatility in different environments. It is capable of being installed at depths up to 20 meters, providing flexibility for underground or submerged setups. The mechanical seals of this presented FKV series Dab submersible pump on the pump side are made of silicon carbide (SiC/SiC), offering high resistance to wear and corrosion, while the motor side seals are SiC and carbon, ensuring a tight and reliable seal. With a maximum delivery head of 14 meters and a flow rate of 1920 liters per minute, this Dab sewage pump delivers strong performance for demanding tasks. It operates on a three-phase power supply of 400 volts, with a power consumption of 4 kilowatts or 5.5 horsepower. Weighing 166 kilograms, it is built for stability and durability in industrial environments.
| Specification | Value |
| Impeller Type | Vortex |
| Solid Handling | 65 – 100 mm |
| Fluid pH | 6.5- 12 |
| Fluid Temperature Range | from 0° to +40°C |
| Max installation Depth | 20 m |
| Impeller Material | cast iron |
| Mechanical seal pump side | SiC/SiC |
| Mechanical seal motor side | SiC/Carbon |
| Max delivery head | 14 m |
| Max flow rate | 1920 l/min |
| Three-phase voltage | 400 V |
| Power | 4 kW |
| Power (HP) | 5.5 HP |
| Weight | 166 kg |

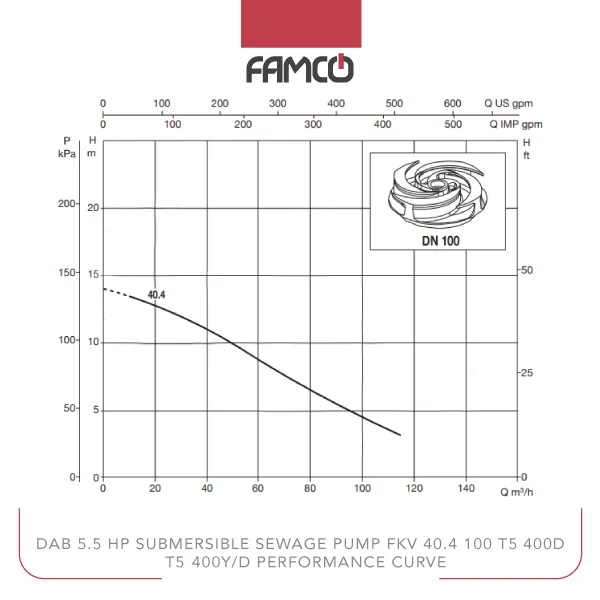

Dab 5.5 HP Submersible Sewage Pump FKV 100 40.4 T5 400D Performance Data
| m3 /h | 0 | 14.4 | 28.8 | 43.2 | 57.6 | 72 | 86.4 | 100.8 | 115.2 |
| l/min | 0 | 240 | 480 | 720 | 960 | 1200 | 1440 | 1680 | 1920 |
| Head (m) | 14 | 13.2 | 12 | 10.6 | 9 | 7.4 | 5.8 | 4.3 | 3.1 |
Dab 5.5 HP Submersible Sewage Pump FKV 100 40.4 T5 400D Applications
- Wastewater and sewage pumping
- Industrial fluid transfer
- Sludge and slurry handling
- Flood control and drainage systems
Dab 5.5 HP Submersible Sewage Pump FKV 100 40.4 T5 400D Benefits
- Handles solids up to 100 mm efficiently
- Durable cast iron construction for long life
- High flow rate with strong head capacity
- Reliable operation with corrosion-resistant seals
Dab 5.5 HP Submersible Sewage Pump FKV 100 40.4 T5 400D Price List
| No. | Name | Price |
| 1 | Dab 5.5 HP Submersible Sewage Pump FKV 100 40.4 T5 400D Price | Contact us |
