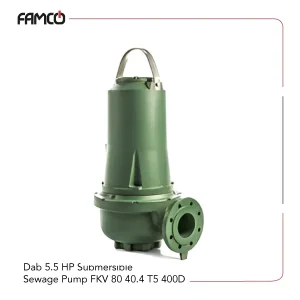

Dab 5.5 HP Submersible Sewage Pump FKC 80 40.4 T5 400D Specifications
This pump features a single channel impeller made of durable cast iron, designed for efficient fluid movement. It can handle solids up to 100 mm in diameter, making this Dab submersible pump less susceptible to wear and corrosion from solid-laden wastewater or slurry materials. The pump operates within a pH range of 6.5 to 12, allowing it to work with different types of liquids without corrosion issues. It is capable of functioning in fluid temperatures from 0°C to 40°C, which covers most typical industrial and municipal scenarios. The maximum installation depth is 20 meters, making it versatile for deep well or submerged applications. The mechanical seals are made of SiC/SiC on the pump side and SiC/Carbon on the motor side, ensuring durability and reliable sealing under demanding conditions. With a maximum delivery head of 17.4 meters and a flow rate of up to 2640 liters per minute, this Dab sewage pump provides high performance for large-scale operations. It operates on a three-phase power supply of 400 volts, with a power consumption of 4 kW or 5.5 HP. The weight of the unit is 177 kilograms, indicating a robust and sturdy construction suitable for industrial environments.
| Specification | Value |
| Impeller Type | Single channel |
| Solid Handling | 65 – 100 mm |
| Fluid pH | 6.5- 12 |
| Fluid Temperature Range | from 0° to +40°C |
| Max installation Depth | 20 m |
| Impeller Material | cast iron |
| Mechanical seal pump side | SiC/SiC |
| Mechanical seal motor side | SiC/Carbon |
| Max delivery head | 17.4 m |
| Max flow rate | 2640 l/min |
| Three-phase voltage | 400 V |
| Power | 4 kW |
| Power (HP) | 5.5 HP |
| Weight | 177 kg |
Dab 5.5 HP Submersible Sewage Pump FKC 80 40.4 T5 400D Performance Data
| m3 /h | 0 | 14 | 29 | 43 | 58 | 72 | 86 | 101 | 115 | 130 | 144 | 158 |
| l/min | 0 | 240 | 480 | 720 | 960 | 1200 | 1440 | 1680 | 1920 | 2160 | 2400 | 2640 |
| Head (m) | 17.4 | 15.74 | 14.3 | 13 | 11.9 | 10.9 | 10 | 9.2 | 8.3 | 7.4 | 6.4 | 5.3 |
Dab 5.5 HP Submersible Sewage Pump FKC 80 40.4 T5 400D Applications
- Wastewater treatment plants
- Slurry and semi-solid fluid transfer
- Deep well pumping
- Industrial fluid handling
Dab 5.5 HP Submersible Sewage Pump FKC 80 40.4 T5 400D Benefits
- High flow rate for large volume transfer
- Durable cast iron construction
- Handles solids up to 100 mm
- Reliable mechanical seals for long-term use
Dab 5.5 HP Submersible Sewage Pump FKC 80 40.4 T5 400D Price List
| No. | Name | Price |
| 1 | Dab 5.5 HP Submersible Sewage Pump FKC 80 40.4 T5 400D Price | Contact us |
