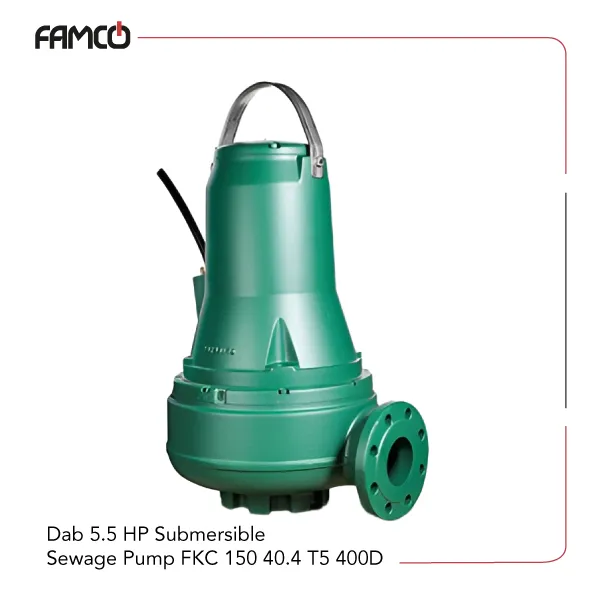

Dab 5.5 HP Submersible Sewage Pump FKC 150 40.4 T5 400D Specifications
This Dab submersible pump features a robust single-channel cast iron impeller designed for efficient fluid movement and solid handling up to 100 mm. The Dab sewage pump works well within a pH range of 6.5 to 12 and handles fluid temperatures between 0°C and 40°C. It supports installation depths up to 20 meters, offering flexibility for various setups. Equipped with SiC/SiC mechanical seals on the pump side and SiC/Carbon on the motor side, it guarantees durability and leak resistance. Delivering a maximum head of 12.4 meters and flow rates up to 3960 liters per minute, this pump runs on a 5.5 HP (4 kW), 400 V three-phase motor, weighing 181 kg, making it suitable for tough sewage and wastewater tasks.
| Specification | Value |
| Impeller Type | Single channel |
| Solid Handling | 65 – 100 mm |
| Fluid pH | 6.5- 12 |
| Fluid Temperature Range | from 0° to +40°C |
| Max installation Depth | 20 m |
| Impeller Material | cast iron |
| Mechanical seal pump side | SiC/SiC |
| Mechanical seal motor side | SiC/Carbon |
| Max delivery head | 12.4 m |
| Max flow rate | 3960 l/min |
| Three-phase voltage | 400 V |
| Power | 4 kW |
| Power (HP) | 5.5 HP |
| Weight | 181 kg |
Dab 5.5 HP Submersible Sewage Pump FKC 150 40.4 T5 400D Performance Data
| m3 /h | 0 | 22 | 43 | 65 | 86 | 108 | 130 | 151 | 173 | 194 | 216 | 238 |
| l/min | 0 | 360 | 720 | 1080 | 1440 | 1800 | 2160 | 2520 | 2880 | 3240 | 3600 | 3960 |
| Head (m) | 12.4 | 11.5 | 10.6 | 9.7 | 8.8 | 7.9 | 7 | 6.1 | 5.2 | 4.2 | 3.2 | 2.2 |
Dab 5.5 HP Submersible Sewage Pump FKC 150 40.4 T5 400D Applications
- Wastewater and sewage pumping
- Slurry and semi-solid transfer
- Deep water or underground pumping
- Industrial fluid management
Dab 5.5 HP Submersible Sewage Pump FKC 150 40.4 T5 400D Benefits
- Handles solids up to 100 mm for versatile use
- High flow rate and head for demanding tasks
- Durable cast iron construction ensures longevity
- Reliable mechanical seals prevent leaks
Dab 5.5 HP Submersible Sewage Pump FKC 150 40.4 T5 400D Price List
| No. | Name | Price |
| 1 | Dab 5.5 HP Submersible Sewage Pump FKC 150 40.4 T5 400D Price | Contact us |
