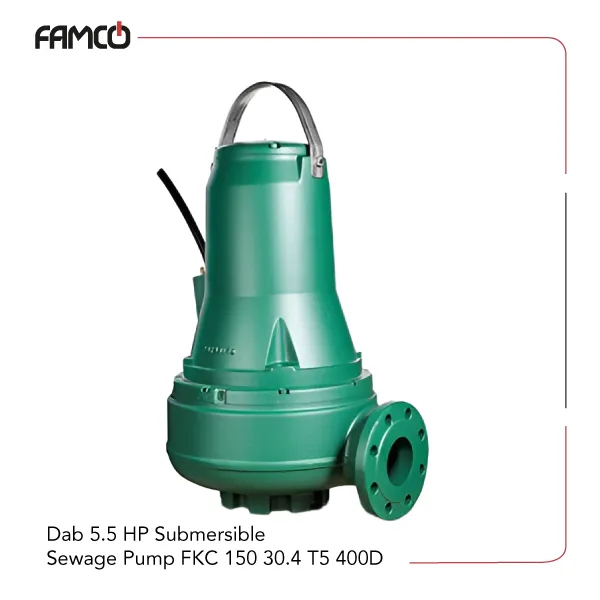

Dab 5.5 HP Submersible Sewage Pump FKC 150 30.4 T5 400D

Dab 5.5 HP Submersible Sewage Pump FKC 150 30.4 T5 400D Specifications

The Dab 5.5 HP Submersible Sewage Pump FKC 150 30.4 T5 400D is a Dab submersible pump equipped with a durable cast-iron single-channel impeller for efficient fluid movement, capable of passing solids up to 100 mm. It operates across a pH range of 6.5–12 and in fluid temperatures from 0°C to 40°C, and can be installed down to 20 meters for submerged applications. Sealing is handled by SiC/SiC on the pump side and SiC/Carbon on the motor side for long-lasting leak resistance. With a maximum head of 9.7 m and a flow rate up to 3600 l/min, this Dab sewage pump delivers the volume needed for demanding jobs. It runs on a 3 kW (5.5 HP) three-phase 400 V motor and weighs 181 kg.



Specification	Value
Impeller Type	Single channel
Solid Handling	65 – 100 mm
Fluid pH	6.5- 12
Fluid Temperature Range	from 0° to +40°C
Max installation Depth	20 m
Impeller Material	cast iron
Mechanical seal pump side	SiC/SiC
Mechanical seal motor side	SiC/Carbon
Max delivery head	9.7 m
Max flow rate	3600 l/min
Three-phase voltage	400 V
Power	3 kW
Power (HP)	5.5 HP
Weight	181 kg



Dab 5.5 HP Submersible Sewage Pump FKC 150 30.4 T5 400D Performance Data

m3 /h	0	22	43	65	86	108	130	151	173	194	216
l/min	0	360	720	1080	1440	1800	2160	2520	2880	3240	3600
Head (m)	9.7	9.1	8.5	7.8	7.1	6.3	5.5	4.7	3.8	3	2.1





Dab 5.5 HP Submersible Sewage Pump FKC 150 30.4 T5 400D Applications

• Industrial wastewater management
• Drainage and flood control
• Sewage and sludge pumping
• Construction site dewatering



Dab 5.5 HP Submersible Sewage Pump FKC 150 30.4 T5 400D Benefits

• Handles solids up to 100 mm efficiently
• Durable cast iron construction
• High flow rate of 3600 l/min
• Reliable operation at depths up to 20 meters



Dab 5.5 HP Submersible Sewage Pump FKC 150 30.4 T5 400D Price List

No.	Name	Price
1	Dab 5.5 HP Submersible Sewage Pump FKC 150 30.4 T5 400D Price	Contact us
