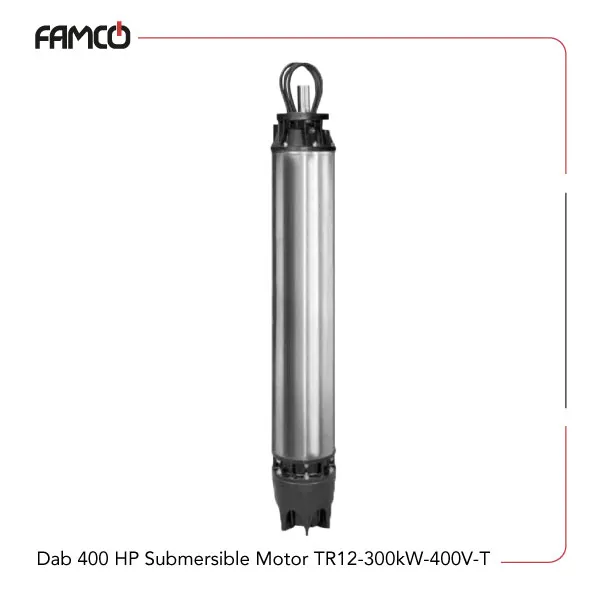

Dab 400 HP Submersible Motor TR12-300 kW-400V-T

300 kW (400 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: DAB Pumps, Dab Submersible Pump

Overview of Dab 400 HP Submersible Motor TR12-300 kW-400V-T

Dab 400 HP submersible motor TR12-300 kW-400V-T is designed to handle substantial workloads, delivering a robust power output of 300 kW (400 HP). When it comes to electrical demands, it draws 575 A during normal operation, and during startup, the current can spike up to six times the running current, highlighting the motor’s capacity to overcome initial resistance. This combination of power and performance makes it suitable for applications where strong, steady operation under challenging conditions is essential.

Dab 400 HP Submersible Motor TR12-300 kW-400V-T Specifications

Dab 400 HP submersible motor TR12-300 kW-400V-T delivers 300 kW (equivalent to 400 HP) and operates at a speed of 3000 rpm. It requires a current of 575 amperes and has a starting current ratio of 6. The motor’s power consumption at P1 is 341,000 watts, making it suitable for demanding industrial applications. It features a flanging size of 12 inches and is protected by an IP58 rating, with an option for IP68 upon request, ensuring durability in harsh environments. The cooling system maintains a flow speed of 0.5 meters per second, which helps in efficient heat dissipation. The power supply tolerance ranges from +6% to -10%, allowing some flexibility in voltage variations. This Dab sabmersible pump motor can be started up to five times per hour and is designed to operate at depths up to 300 meters under water. It can withstand maximum operating pressures of 60 bar and is suitable for horizontal operation within the range of 180 HP to 260 HP. Overall, this motor is built for reliability and performance in challenging industrial and underwater conditions.

Specification	Value
Power (kW)	300
Power (HP)	400
Current (A)	575
Starting Current Ratio	6
P1 (W)	341000
Speed (rpm)	3000
Flanging	12″
Protection class	IP58 (IP68 on request)
Cooling flow speed	0.5 m/s
Power supply tolerance	+6% / -10%
Max. starts	5/h
Max operating depth	300 m
Max operating temperature	60 bar
Horizontal operation	180 HP – 260 HP

Dab 400 HP Submersible Motor TR12-300 kW-400V-T Applications

Underwater drilling and mining
Industrial pumping systems
Marine propulsion systems
Heavy machinery in harsh environments

Dab 400 HP Submersible Motor TR12-300 kW-400V-T Benefits

High power output for demanding tasks
Durable protection against harsh conditions
Efficient cooling system for continuous operation
Flexible installation options for various environments

Dab 400 HP Submersible Motor TR12-300 kW-400V-T Price List

No.	Name	Price
1	Dab 400 HP Submersible Motor TR12-300 kW-400V-T Price	Contact us

Brand	Dab
Power (HP)	400
Power (kW)	300
Current (A)	575
Speed (RPM)	3000
Degree of Protection	IP58
