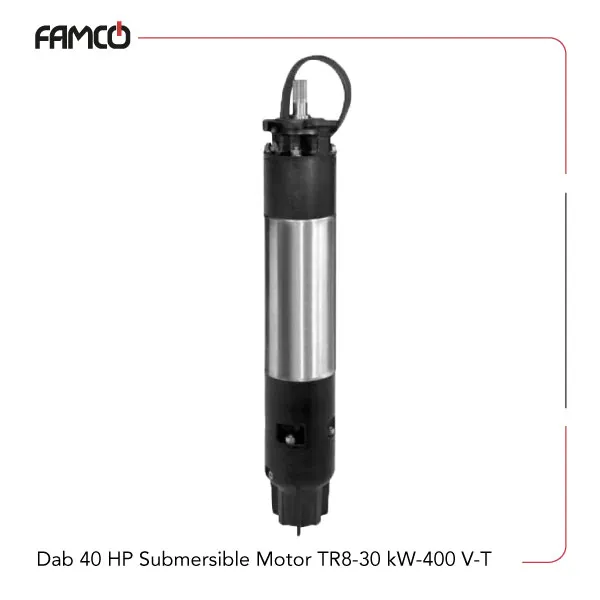

Dab 40 HP Submersible Motor TR8-30 kW-400 V-T Specifications
Dab submersible motor TR8-30 kW-400 V-T motor running at 3000 rpm, designed for demanding industrial applications. It draws 61 amperes and has a starting current ratio of 5.7, providing high starting torque. This Dab motor features a NEMA 8″ flange for easy and secure mounting. With an IP58 protection rating, and an optional IP68 upgrade, it handles dust and water exposure effectively. The cooling system maintains a flow speed of 0.5 meters per second, keeping the motor from overheating during continuous operation. It can accommodate power supply variations of +6% to -10% and supports up to 10 starts per hour, making it suitable for operations with frequent startups. The motor is built to operate at depths of up to 300 meters and withstand pressures up to 60 bar, making it well-suited for deep-sea or high-pressure environments.
| Specification | Value |
| Power (kW) | 30 |
| Power (HP) | 40 |
| Current (A) | 61 |
| Starting Current Ratio | 5.7 |
| P1 (W) | 35714 |
| Speed (rpm) | 3000 |
| Flanging | NEMA 8″ |
| Protection Class | IP58 (IP68 on request) |
| Cooling Flow Speed (m/s) | 0.5 |
| Power Supply Tolerance | +6%/-10% |
| Max Starts | 10/h |
| Max Operating Depth (m) | 300 |
| Max Operating Temperature (bar) | 60 |
| Horizontal Operation | 30 HP – 125 HP |
Dab 40 HP Submersible Motor TR8-30 kW-400 V-T Applications
- Deep-sea exploration equipment
- Industrial pumps and compressors
- Heavy-duty machinery
- Underwater robotics
Dab 40 HP Submersible Motor TR8-30 kW-400 V-T Benefits
- High power output for demanding tasks
- Excellent water and dust resistance
- Reliable performance with multiple starts per hour
- Suitable for deep water and high-pressure environments
Dab 40 HP Submersible Motor TR8-30 kW-400 V-T Price List
| No. | Name | Price |
| 1 | Dab 40 HP Submersible Motor TR8-30 kW-400 V-T Price | Contact us |
