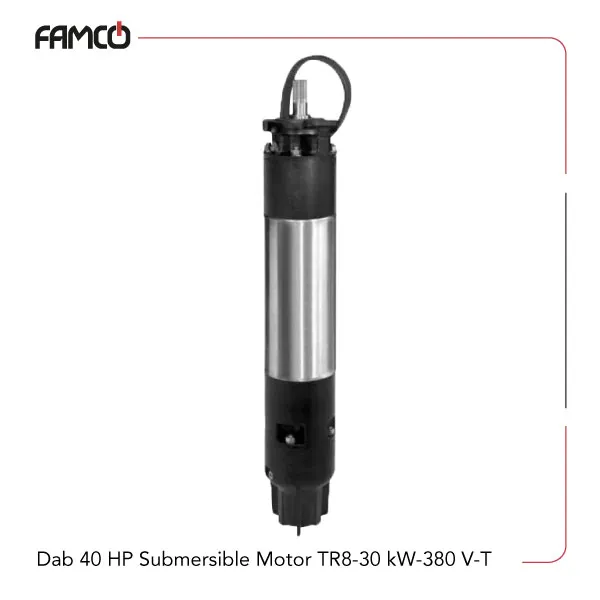

Dab 40 HP Submersible Motor TR8-30 kW-380 V-T V-T Specifications
This product is equipped with a 30 kW (40 HP) motor, designed to handle a variety of industrial applications. It draws 65 amperes and has a starting current ratio of 4.5, allowing for smooth startups. During operation, the motor consumes approximately 36,585 watts, making it suitable for demanding tasks. This Dab submersible motor features a NEMA 8″ flange for secure and easy mounting. Its IP58 protection rating shields it from dust and water, with an IP68 option available for environments that require extra sealing. The cooling system maintains an airflow speed of 0.5 meters per second, helping to manage heat during continuous operation. It can tolerate power supply variations of +6% to -10% and supports up to 10 starts per hour, making it well-suited for applications that require frequent restarts. Designed to operate at depths up to 300 meters and withstand pressures up to 60 bar, this motor is capable of performing in underwater or high-pressure environments.
| Specification | Value |
| Power (kW) | 30 |
| Power (HP) | 40 |
| Current (A) | 65 |
| Starting Current Ratio | 4.5 |
| P1 (W) | 36585 |
| Flanging | NEMA 8″ |
| Protection Class | IP58 (IP68 on request) |
| Cooling Flow Speed (m/s) | 0.5 |
| Power Supply Tolerance | +6%/-10% |
| Max Starts | 10/h |
| Max Operating Depth (m) | 300 |
| Max Operating Temperature (bar) | 60 |
| Horizontal Operation | 30 HP – 125 HP |
Dab 40 HP Submersible Motor TR8-30 kW-380 V-T Applications
- Industrial pumping systems
- Manufacturing machinery
- Underwater equipment
- High-pressure environments
Dab 40 HP Submersible Motor TR8-30 kW-380 V-T Benefits
- High power output for demanding tasks
- Excellent protection against dust and water
- Flexible operation range
- Reliable performance in harsh conditions
Dab 40 HP Submersible Motor TR8-30 kW-380 V-T Price List
| No. | Name | Price |
| 1 | Dab 40 HP Submersible Motor TR8-30 kW-380 V-T Price | Contact us |
