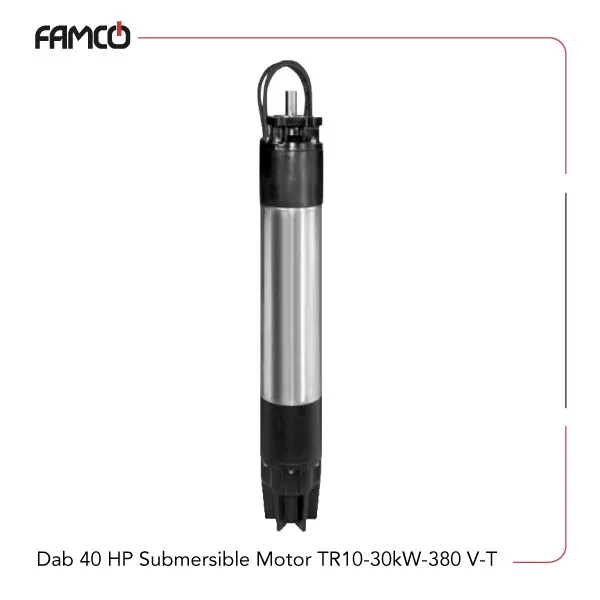

Dab 40 HP Submersible Motor TR10-30 kW-380 V-T Specifications
The Dab submersible motor TR10-30 kW-380 V-T features a robust 30 kW (40 HP) power rating, delivering reliable performance in demanding operating conditions. It runs at 1500 rpm and draws 64 amperes, with a starting current ratio of 5.3 to ensure smooth and dependable startups. This Dab motor consumes approximately 35,294 watts during operation and is equipped with a 10-inch flanging system for secure installation. It carries an IP58 protection rating, with an optional upgrade to IP68 for applications requiring enhanced resistance to water and dust ingress. Cooling is ensured by a flow speed of 0.5 m/s, supporting effective thermal management. The power supply tolerance is +6%/-10%, and the unit can be started up to eight times per hour without operational concerns. Engineered for underwater use, it is capable of operating at depths up to 300 meters and withstanding pressures up to 60 bar.
| Specification | Value |
| Power (kW) | 30 |
| Power (HP) | 40 |
| Current (A) | 64 |
| Starting Current Ratio | 5.3 |
| P1 (W) | 35294 |
| Speed (rpm) | 1500 |
| Flanging | 10″ |
| Protection class | IP58 (IP68 on request) |
| Cooling flow speed | 0.5 m/s |
| Power supply tolerance | +6%/-10% |
| Max. starts | 8/h |
| Max. operating depth | 300 m |
| Max. operating temperature | 60 bar |
| Horizontal operation | 100 HP-230 HP |
Dab 40 HP Submersible Motor TR10-30 kW-380 V-T Applications
- Underwater exploration and subsea equipment
- Heavy-duty industrial machinery
- Deep-sea oil and gas extraction
- Marine research and testing
Dab 40 HP Submersible Motor TR10-30 kW-380 V-T Benefits
- High power output for demanding tasks
- Durable protection against harsh environments
- Reliable performance at great depths
- Flexible operation with high tolerance to power fluctuations
Dab 40 HP Submersible Motor TR10-30 kW-380 V-T Price List
| No. | Name | Price |
| 1 | Dab 40 HP Submersible Motor TR10-30 kW-380 V-T Price | Contact us |
