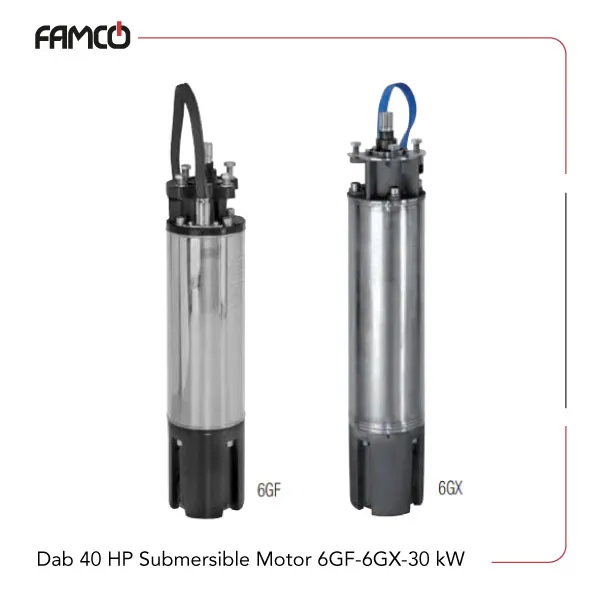

Dab 40 HP Submersible Motor 6GF/6GX-30 kW Specifications
This industrial motor offers a robust 30 kW (40 HP) power output, making it suitable for heavy-duty applications. It operates at a speed of 3000 rpm and draws a current of 61.5 amperes. The motor features a starting current ratio of 4.6, ensuring reliable startup performance. It is equipped with a NEMA 6-inch flanging for secure mounting and has an insulation class rated F, which provides good thermal endurance. The protection class is IP68, meaning it is highly resistant to dust and water ingress, ideal for harsh environments. Cooling is managed through a flow speed of at least 0.3 meters per second at 35°C, maintaining optimal operating temperatures. The power supply tolerance allows for fluctuations of +6% to -10%, ensuring stable operation under varying electrical conditions. The motor can handle up to 25 starts per hour, suitable for intermittent duty cycles. It is designed for deep-sea or underwater applications with a maximum operating depth of 300 meters. Additionally, it supports horizontal operation within a power range of 5.5 HP to 50 HP, making it versatile for different industrial setups.
| Model | 400V | 415V |
| Current (A) | 61.5 | 63.5 |
| Starting Current Ratio | 4.6 | 4.7 |
| Power (kW) | 30 | |
| Power (HP) | 40 | |
| P1 (W) | 35130 | |
| Speed (rpm) | 3000 | |
| Flanging | NEMA 6″ | |
| Insulation Class | F | |
| Protection Class | IP68 | |
| Cooling Flow Speed | min.0.3 m/s 35°C | |
| Power Supply Tolerance | +6%/-10% | |
| Max Starts | 25/h | |
| Max Operating Depth | 300 m | |
| Horizontal Operation | 5.5 HP-50 HP | |
Dab 40 HP Submersible Motor 6GF/6GX-30 kW Applications
- Underwater pumping systems
- Industrial machinery
- Marine equipment
- Heavy-duty water transfer systems
Dab 40 HP Submersible Motor 6GF/6GX-30 kW Benefits
- High durability with IP68 protection
- Reliable performance at 300 meters depth
- Suitable for frequent starts up to 25 per hour
- Versatile operation from 5.5 HP to 50 HP
Dab 40 HP Submersible Motor 6GF/6GX-30 kW Price List
| No. | Name | Price |
| 1 | Dab 40 HP Submersible Motor 6GF/6GX-30 kW Price | Contact us |
