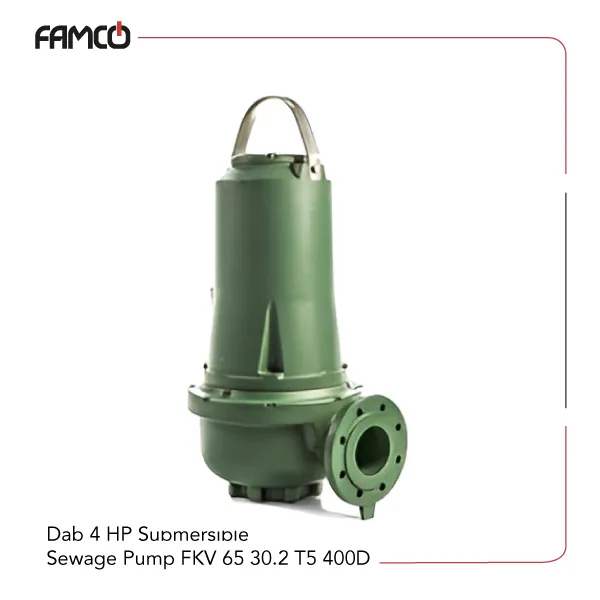

Dab 4 HP Submersible Sewage Pump FKV 65 30.2 T5 400D Specifications
This pump features a Vortx impeller designed for efficient fluid movement. It handles solids between 65 and 100 mm, making it suitable for various applications. The pump operates within a pH range of 6.5 to 12 and can work with fluids from 0°C up to 40°C. It can be installed at depths up to 20 meters. The impellers placed inside this Dab submersible pump are made of durable cast iron, ensuring longevity. The mechanical seals are made of SiC/SiC on the pump side and SiC/Carbon on the motor side, providing reliable sealing and reducing leakage. It can deliver a maximum head of 21.1 meters and a flow rate of up to 960 liters per minute. Powered by a 3 kW (4 HP) motor, the 4 HP FKV-series Dab sewage pump runs on a three-phase 400V supply. The pump weighs 94 kg, making it sturdy yet manageable for installation and maintenance.
| Specification | Value |
| Impeller Type | Vortx |
| Solid Handling | 65 – 100 mm |
| Fluid pH | 6.5- 12 |
| Fluid Temperature Range | 0°C to +40°C |
| Max installation Depth | 20 m |
| Impeller Material | Cast iron |
| Mechanical seal pump side | SiC/SiC |
| Mechanical seal motor side | SiC/Carbon |
| Max delivery head | 21.1 m |
| Max flow rate | 960 l/min |
| Three-phase voltage | 400 V |
| Power | 3 kW |
| Power (HP) | 4 HP |
| Weight | 94 kg |
Dab 4 HP Submersible Sewage Pump FKV 65 30.2 T5 400D Performance Curve
| m3 /h | 0 | 7.2 | 14.4 | 21.6 | 28.8 | 36 | 43.2 | 50.4 | 57.6 |
| l/min | 0 | 120 | 240 | 360 | 480 | 600 | 720 | 840 | 960 |
| Head (m) | 21.1 | 19.5 | 17.1 | 14.2 | 11.1 | 8.1 | 5.4 | 3.4 | 2.3 |
Dab 4 HP Submersible Sewage Pump FKV 65 30.2 T5 400D Applications
- Industrial wastewater management
- Sewage and sludge pumping
- Flood control and drainage
- Construction site dewatering
Dab 4 HP Submersible Sewage Pump FKV 65 30.2 T5 400D Benefits
- Handles solids up to 100 mm efficiently
- Durable cast iron construction for longevity
- High flow rate and maximum head for versatile use
- Reliable sealing system reduces leakage
Dab 4 HP Submersible Sewage Pump FKV 65 30.2 T5 400D Price List
| No. | Name | Price |
| 1 | Dab 4 HP Submersible Sewage Pump FKV 65 30.2 T5 400D Price | Contact us |
