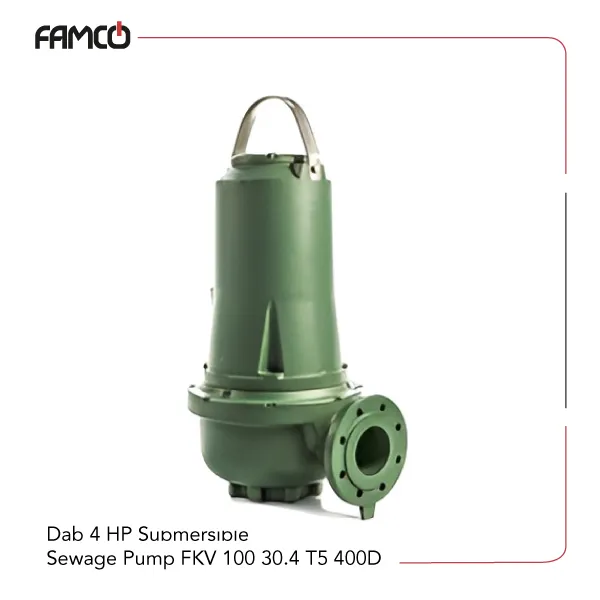

Dab 4 HP Submersible Sewage Pump FKV 100 30.4 T5 400D Specifications
This pump features a vortex impeller designed for efficient handling of solids up to 100 mm in diameter. It operates within a fluid pH range of 6.5 to 12, making the Dab sewage pump suitable for various liquids. The device can manage fluid temperatures from 0°C to 40°C and is capable of being installed at depths up to 20 meters. Constructed with a durable cast iron impeller, it ensures longevity and resistance to wear. The mechanical seals on the pump side are made of SiC/SiC, providing high durability, while the motor side seals are SiC/Carbon for reliable sealing. This series of Dab submersible pumps can achieve considerable heights, and the FKV 100 30.4 T5 400D has a maximum delivery head of 11.8 meters and a flow rate of 1680 liters per minute. Powered by a 3 kW (4 HP) motor supplied at 400 V three-phase voltage, it weighs approximately 166 kg, indicating a solid build suitable for demanding applications.
| Specification | Value |
| Impeller Type | Vortex |
| Solid Handling | 65 – 100 mm |
| Fluid pH | 6.5- 12 |
| Fluid Temperature Range | from 0° to +40°C |
| Max installation Depth | 20 m |
| Impeller Material | cast iron |
| Mechanical seal pump side | SiC/SiC |
| Mechanical seal motor side | SiC/Carbon |
| Max delivery head | 11.8 m |
| Max flow rate | 1680 l/min |
| Three-phase voltage | 400 V |
| Power | 3 kW |
| Power (HP) | 4 HP |
| Weight | 166 kg |

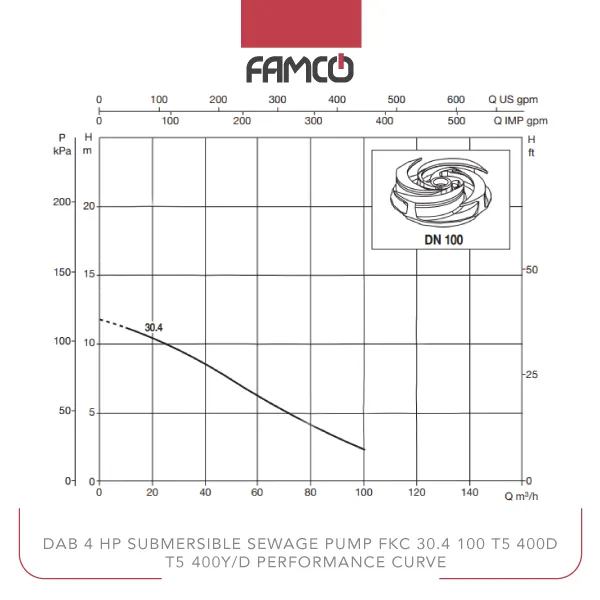

Dab 4 HP Submersible Sewage Pump FKV 100 30.4 T5 400D Performance Data
| m3 /h | 0 | 14.4 | 28.8 | 43.2 | 57.6 | 72 | 86.4 | 100.8 |
| l/min | 0 | 240 | 480 | 720 | 960 | 1200 | 1440 | 1680 |
| Head (m) | 11.8 | 10.9 | 9.7 | 8.2 | 6.5 | 4.9 | 3.4 | 2.3 |
Dab 4 HP Submersible Sewage Pump FKV 100 30.4 T5 400D Applications
- Wastewater and sewage pumping
- Industrial liquid transfer
- Flood control and drainage
- Municipal water management
Dab 4 HP Submersible Sewage Pump FKV 100 30.4 T5 400D Benefits
- Handles large solids efficiently
- Durable cast iron construction
- Reliable mechanical seals for long-lasting performance
- High flow rate with significant head capacity
Dab 4 HP Submersible Sewage Pump FKV 100 30.4 T5 400D Price List
| No. | Name | Price |
| 1 | Dab 4 HP Submersible Sewage Pump FKV 100 30.4 T5 400D Price | Contact us |
