Dab 4 HP Submersible Sewage Pump FKC 80 30.4 T5 400D Specifications
This pump features a single channel impeller made of durable cast iron, designed for efficient fluid movement. It handles solids up to 100 mm in size, making it suitable for various applications involving semi-solid or slurry materials. The pump operates within a pH range of 6.5 to 12, ensuring compatibility with different liquids. It can work in temperatures from 0°C to 40°C, ideal for diverse environments. The maximum installation depth to consider for this Dab submersible pump is 20 meters, allowing flexible placement options. Mechanical seals are made of SiC/SiC on the pump side and SiC/Carbon on the motor side, providing reliable sealing and durability. It can achieve a maximum head of 13.9 meters and a flow rate of up to 2400 liters per minute, making the FKC series Dab sewage pump presented to you here suitable for high-volume applications. Powered by a 3 kW (4 HP) motor supplied at 400 V three-phase power, it weighs 177 kg, indicating a robust build for demanding tasks.
| Specification | Value |
| Impeller Type | Single channel |
| Solid Handling | 65 – 100 mm |
| Fluid pH | 6.5- 12 |
| Fluid Temperature Range | from 0° to +40°C |
| Max installation Depth | 20 m |
| Impeller Material | cast iron |
| Mechanical seal pump side | SiC/SiC |
| Mechanical seal motor side | SiC/Carbon |
| Max delivery head | 13.9 m |
| Max flow rate | 2400 l/min |
| Three-phase voltage | 400 V |
| Power | 3 kW / 4 HP |
| Weight | 177 kg |

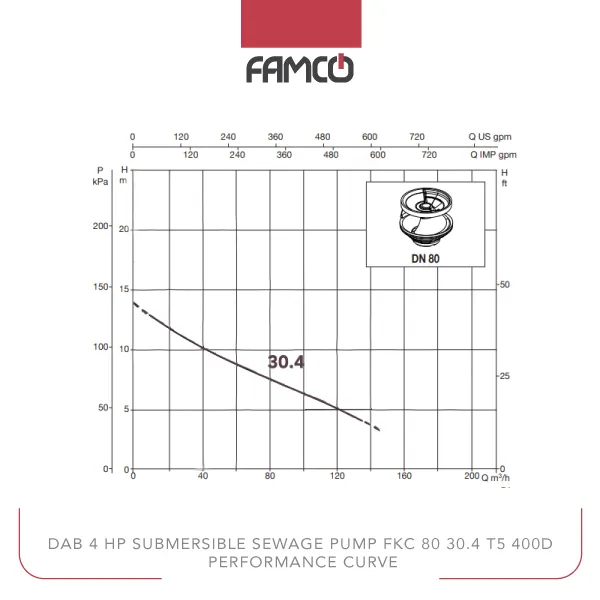

Dab 4 HP Submersible Sewage Pump FKC 80 30.4 T5 400D Performance Data
| m3 /h | 0 | 14 | 29 | 43 | 58 | 72 | 86 | 101 | 115 | 130 | 144 |
| l/min | 0 | 240 | 480 | 720 | 960 | 1200 | 1440 | 1680 | 1920 | 2160 | 2400 |
| Head (m) | 13.9 | 12.4 | 11.1 | 10 | 9 | 8.1 | 7.2 | 6.4 | 5.4 | 4.4 | 3.3 |
Dab 4 HP Submersible Sewage Pump FKC 80 30.4 T5 400D Applications
- Industrial wastewater treatment
- Slurry and semi-solid transfer
- Flood control and drainage
- Construction site dewatering
Dab 4 HP Submersible Sewage Pump FKC 80 30.4 T5 400D Benefits
- Handles solids up to 100 mm for versatile use
- Durable cast iron construction ensures longevity
- High flow rate for efficient operation
- Reliable mechanical seals prevent leaks
Dab 4 HP Submersible Sewage Pump FKC 80 30.4 T5 400D Price List
| No. | Name | Price |
| 1 | Dab 4 HP Submersible Sewage Pump FKC 80 30.4 T5 400D Price | Contact us |
