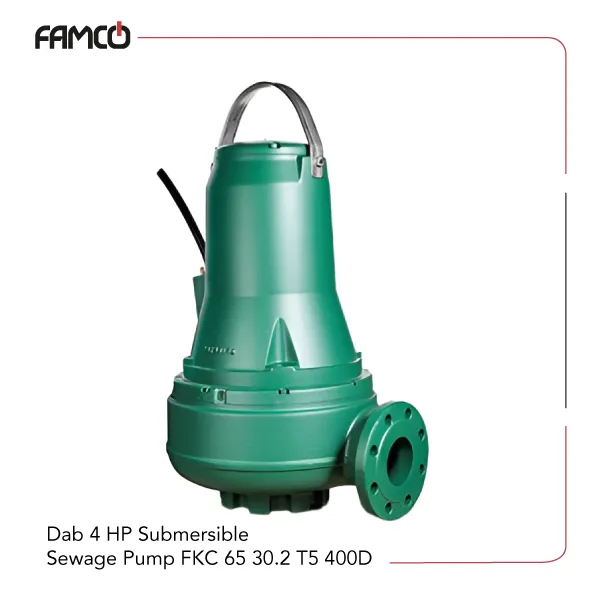

Dab 4 HP Submersible Sewage Pump FKC 65 30.2 T5 400D Specifications
This pump features a single channel impeller made of durable cast iron, designed for handling solids between 65 and 100 mm. It operates efficiently within a pH range of 6.5 to 12 and can manage fluid temperatures from 0°C up to 40°C. The pump can be installed at depths up to 20 meters, making it suitable for various applications. Its mechanical seals are made of SiC/SiC on the pump side and SiC/Carbon on the motor side, ensuring reliable sealing and longevity. The maximum delivery head is 26.5 meters, with a flow rate reaching 1800 liters per minute. Powered by a 3 kW (4 HP) motor running on 400 V three-phase power, this Dab submersible pump is a lightweight solution, weighing approximately 109 kg. This Dab sewage pump is ideal for demanding environments requiring solid handling, high flow rates, and reliable performance at moderate depths.
| Specification | Value |
| Impeller Type | Single channel |
| Solid Handling | 65 – 100 mm |
| Fluid pH | 6.5- 12 |
| Fluid Temperature Range | 0°C to +40°C |
| Max installation Depth | 20 m |
| Impeller Material | Cast iron |
| Mechanical seal pump side | SiC/SiC |
| Mechanical seal motor side | SiC/Carbon |
| Max delivery head | 26.5 m |
| Max flow rate | 1800 l/min |
| Three-phase voltage | 400 V |
| Power | 3 kW / 4 HP |
| Weight | 109 kg |

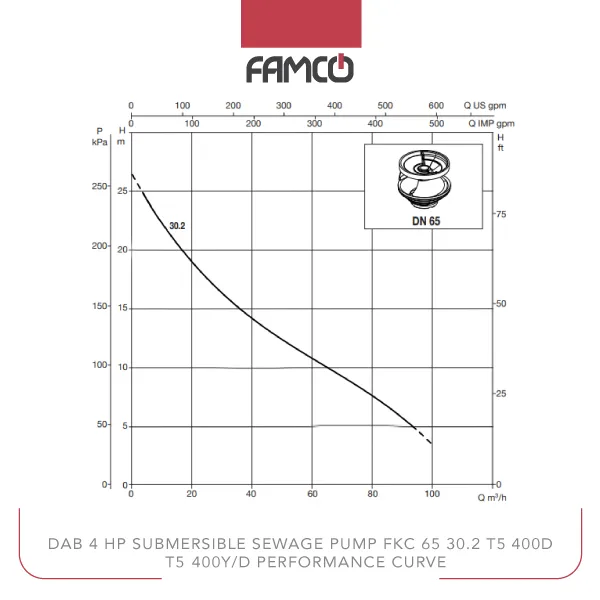

Dab 4 HP Submersible Sewage Pump FKC 65 30.2 T5 400D Performance Data
| m3 /h | 0 | 7.2 | 14.4 | 21.6 | 28.8 | 36 | 43.2 | 50.4 | 57.6 | 64.8 | 72 | 79.2 | 86.4 | 93.6 | 100.8 | 108 |
| l/min | 0 | 120 | 240 | 360 | 480 | 600 | 720 | 840 | 960 | 1080 | 1200 | 1320 | 1440 | 1560 | 1680 | 1800 |
| Head (m) | 26.5 | 23.5 | 23.5 | 20.9 | 18.6 | 16.7 | 15.1 | 13.7 | 12.4 | 11.2 | 10.1 | 9 | 7.8 | 6.5 | 5.1 | 3.4 |
Dab 4 HP Submersible Sewage Pump FKC 65 30.2 T5 400D Applications
- Municipal sewage and wastewater pumping
- Industrial fluid transfer
- Flood control and drainage systems
- Construction site dewatering
Dab 4 HP Submersible Sewage Pump FKC 65 30.2 T5 400D Benefits
- Handles solids up to 100 mm efficiently
- Reliable operation with high flow capacity
- Durable cast iron construction for longevity
- Suitable for deep installations up to 20 meters
Dab 4 HP Submersible Sewage Pump FKC 65 30.2 T5 400D Price List
| No. | Name | Price |
| 1 | Dab 4 HP Submersible Sewage Pump FKC 65 30.2 T5 400D Price | Contact us |
