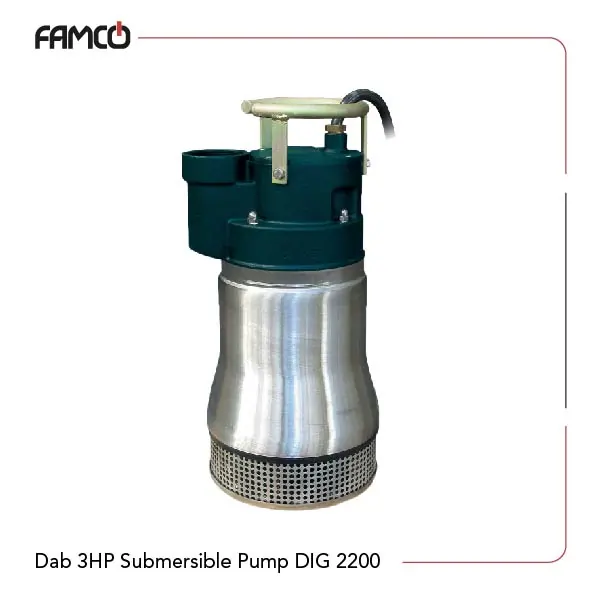

Dab 3HP Submersible Pump DIG 2200

2.2 kW (3HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: DAB Pumps, Dab Submersible Pump

Overview of Dab 3HP Submersible Pump DIG 2200

Dab 3HP submersible pump DIG 2200 is a powerful pump that has its applications at both fixed and portable installations. Its ability to operate at a maximum immersion depth of 20 meters is exceptional for deep water applications. The motor’s IP 68 protection class ensures it withstands harsh conditions, while the insulation class of F provides added safety. Operating on a voltage range of 220-240V and a frequency of 50Hz, this pump delivers a head range of 5.9 to 20.1 meters. The power output is impressive, with 3 HP or 2.2 kW to take up advacnced tasks with ease.

Dab 3HP Submersible Pump DIG 2200 Specifications

Dab 3HP submersible pump DIG 2200 is designed for versatile installation for both fixed and portable setups in a vertical position. This Dab submersible pump handles a maximum immersion depth of 20 metres, provided the appropriate cable length is used. The motor is protected with an IP 68 rating for additional durability and reliability even in challenging environments. This unique product has an insulation class of F to guarantee safe operation. This unit features 2 poles and can accommodate solids up to 6 mm in diameter. A power output of 3 HP enables this pump to handle significant workloads at industrial and commercial uses.

Specification	Value
Installation	fixed or portable, vertical position
Maximum immersion depth	20 metres (with cable of appropriate length)
Motor protection class	IP 68
Insulation class	F
Number of poles	2
Free passage of solids	6 mm
Voltage(V)	220-240
Frequency (Hz)	50
Head (m)	5.9-20.1
Power (HP)	3
Power (kW)	2.2

Dab 3HP Submersible Pump DIG 2200 Materials

Handle: Chrome Steel
Upper Cover: En Gjl 200 Cast Iron
Rotor: Shaft Aisi 420
Motor Body: Aisi 304
Mechanical Seal On Motor Side: Carbon/Alumina
Mechanical Seal On Pump: Silicon Carbide/Silicon Carbide
Impeller: Aisi Astm 532-80

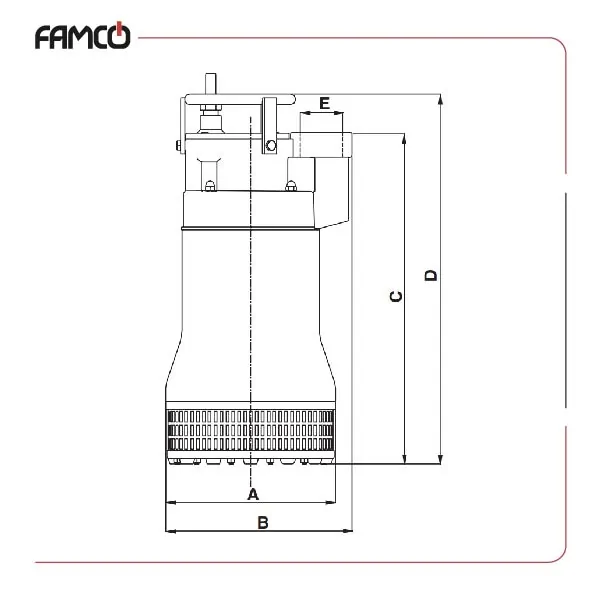

Dab 3HP Submersible Pump DIG 2200Dimensions and Weight

Dimensions (mm)
A	250
B	270
C	480
D	530
E DNM	2 1/2” – F
Weight (kg)	37

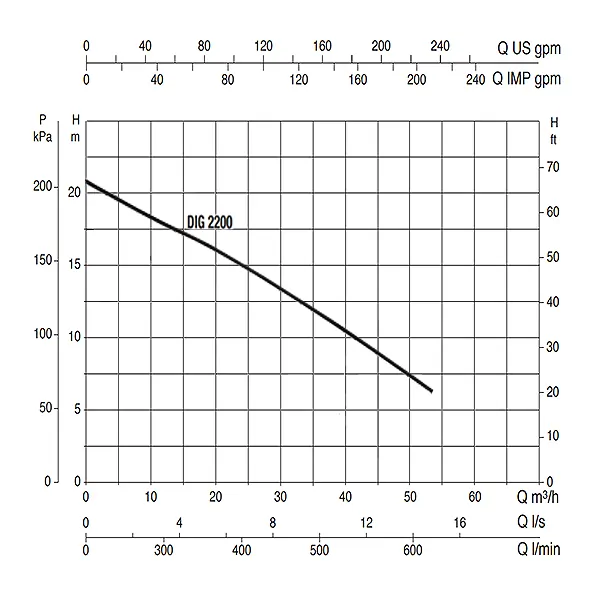

Dab 3HP Submersible Pump DIG 2200 Performance Data

l/min	0	6	12	18	24	30	36	42	48	54
m3 /h	0	100	200	300	400	500	600	700	800	900
H (m)	20.1	–	16.8	15.2	14.1	12.4	10.6	9.1	7.4	5.9

Dab 3HP Submersible Pump DIG 2200 Applications

Water supply systems
Irrigation in agriculture
Drainage in construction sites
Wastewater management

Dab 3HP Submersible Pump DIG 2200 Benefits

- Versatile installation options
- High durability with IP 68 rating
- Efficient power output

Handles solids up to 6 mm

Dab 3HP Submersible Pump DIG 2200 Price List

No.	Name	Price
1	Dab 3HP Submersible Pump DIG 2200 Price	Contact us

Maximum immersion depth (m)	20
Degree of Protection	IP68
Insulation Class	F
Number of Poles	2
Voltage (V)	220-240
Frequency (Hz)	50
Maximum Delivery Head (m)	20.1
Power (HP)	3
Power (kW)	2.2
Mechanical Seal	Carbon/Alumina, Silicon Carbide/Silicon Carbide
Impeller Material	Aisi Astm 532-80
Brand	Dab
