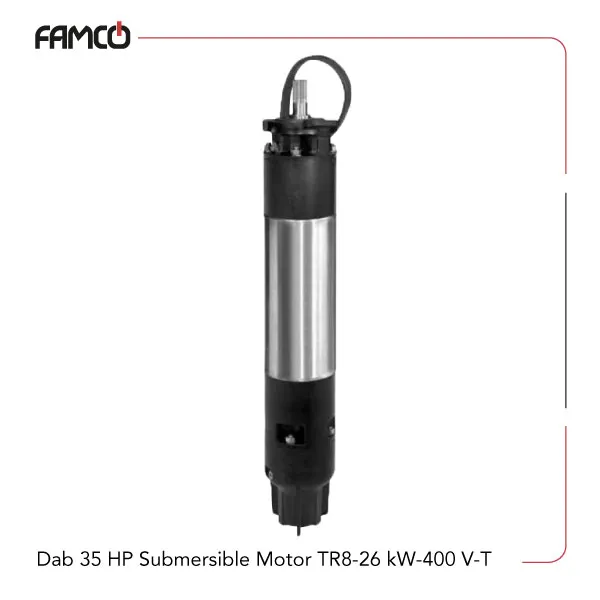

Dab 35 HP Submersible Motor TR8-26 kW-400 V-T Specifications
Dab submersible motor TR8-26 kW-400 V-T is designed for a wide range of industrial applications. It operates at 3000 rpm and can function at depths of up to 300 meters. The motor features a NEMA 8″ flange for secure and straightforward mounting. With an IP58 protection rating, and an optional IP68 version, it is well-prepared to handle dust and water exposure. The cooling system maintains a flow speed of 0.5 meters per second, helping prevent overheating during continuous operation. This Dab submersible motor accepts power supply variations of +6% to -10% and can be started up to 10 times per hour, making it suitable for tasks that require frequent startups. For horizontal setups, it supports power ranges from 30 HP to 125 HP, offering flexibility across different industrial environments. The starting current ratio of 5.1 provides a moderate surge relative to the running current, helping to reduce electrical stress during startup.
| Specification | Value |
| Power (kW) | 26 |
| Power (HP) | 35 |
| Current(A) | 54 |
| Starting Current Ratio | 5.1 |
| P1 (W) | 31707 |
| Speed (rpm) | 3000 |
| Flanging | NEMA 8″ |
| Protection Class | IP58(IP68 on request) |
| Cooling Flow Speed (m/s) | 0.5 |
| Power Supply Tolerance | +6%/-10% |
| Max Starts | 10/h |
| Max Operating Depth (m) | 300 |
| Max Operating Temperature (bar) | 60 |
| Horizontal Operation | 30 HP – 125 HP |
Dab 35 HP Submersible Motor TR8-26 kW-400 V-T Applications
- Deep-sea and underwater operations
- Industrial pumping systems
- Heavy-duty manufacturing equipment
- Oil and gas exploration
Dab 35 HP Submersible Motor TR8-26 kW-400 V-T Benefits
- High power output for demanding tasks
- Robust protection against dust and water
- Efficient cooling system prevents overheating
- Flexible operation with high startup capacity
Dab 35 HP Submersible Motor TR8-26 kW-400 V-T Price List
| No. | Name | Price |
| 1 | Dab 35 HP Submersible Motor TR8-26 kW-400 V-T Price | Contact us |
