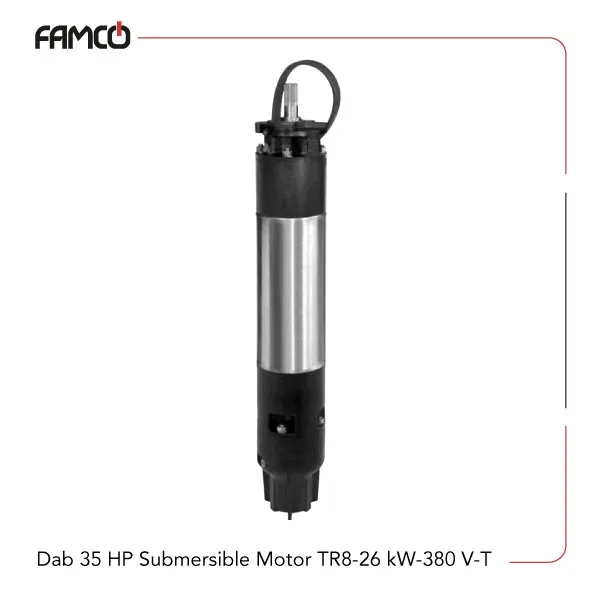

Dab 35 HP Submersible Motor TR8-26 kW-380 V-T Specifications
This motor delivers 26 kW (35 HP) of power, making it well-suited for demanding industrial tasks. It runs at 1500 rpm and draws 58 amperes, with a starting current ratio of 4.7, allowing for a smooth initial surge. During operation, it consumes 32,099 watts. This Dab motor comes with a NEMA 8″ flange for straightforward mounting and connection. It has an IP58 protection rating, providing strong resistance against dust and water, with an IP68 option available for environments that require extra sealing. Cooling is managed through a flow speed of 0.5 m/s, helping to prevent overheating during extended use. It can handle power supply variations of +6%/-10% and can start up to 10 times per hour without issue, making it flexible for operations with frequent startups. Designed for depths of up to 300 meters, it can operate under pressures up to 60 bar, making it suitable for underwater or deep-sea applications. For horizontal operation, it supports power ranges from 30 HP to 125 HP, offering adaptability across a wide range of industrial setups.
| Specification | Value |
| Power (kW) | 26 |
| Power (HP) | 35 |
| Current (A) | 58 |
| Starting Current Ratio | 4.7 |
| P1(W) | 32099 |
| Speed (rpm) | 1500 |
| Flanging | NEMA 8″ |
| Protection Class | IP58(IP68 on request) |
| Cooling Flow Speed (m/s) | 0.5 |
| Power Supply Tolerance | +6%/-10% |
| Max Starts | 10/h |
| Max Operating Depth (m) | 300 |
| Max Operating Temperature (bar) | 60 |
| Horizontal Operation | 30 HP – 125 HP |
Dab 35 HP Submersible Motor TR8-26 kW-380 V-T Applications
- Industrial pumps and water systems
- Deep-sea and underwater equipment
- Heavy-duty compressors
- Manufacturing machinery
Dab 35 HP Submersible Motor TR8-26 kW-380 V-T Benefits
- High power output for demanding tasks
- Excellent protection against dust and water
- Reliable performance in harsh environments
- Flexible operation with adjustable power tolerance
Dab 35 HP Submersible Motor TR8-26 kW-380 V-T Price List
| No. | Name | Price |
| 1 | Dab 35 HP Submersible Motor TR8-26 kW-380 V-T Price | Contact us |
