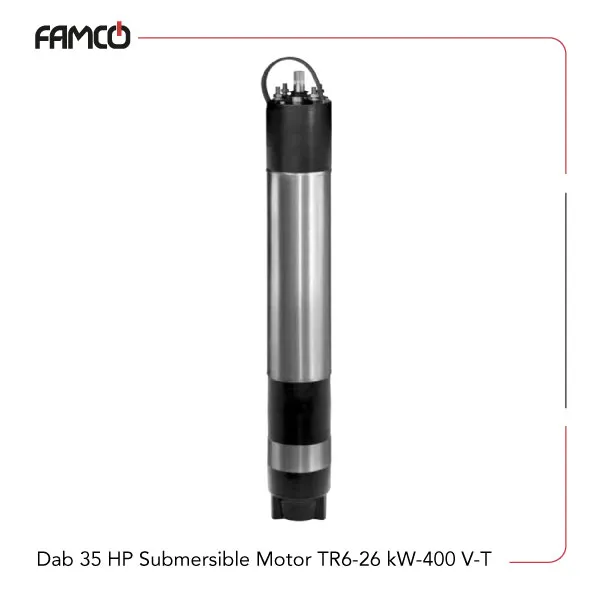

Dab 35 HP Submersible Motor TR6-26 kW-400 V-T Specifications
Dab submersible motor TR6-26 kW-400 V-T features a powerful 26 kW (35 HP) motor that delivers reliable performance in demanding environments. It operates at a speed of 3000 rpm and draws a current of 58 amperes. The starting current ratio is 5.7, ensuring smooth startup. This Dab submersible motor consumes approximately 31,325 watts during operation. It is equipped with a NEMA 6″ flanging for secure mounting and connection. Its IP68 protection class guarantees resistance to dust and water. The cooling system maintains a flow speed of 0.5 meters per second, ensuring efficient heat dissipation. Power supply tolerance is set at +6%/-10%, allowing flexibility in power input. The maximum number of starts per hour is 15, which helps prevent overheating during frequent use. It can operate at depths up to 300 meters and withstand temperatures up to 60 bar. The product is suitable for horizontal operation with a power range of 7.5 to 50 HP, making it versatile for various industrial applications.
| Specification | Value |
| Power (kW) | 26 |
| Power (HP) | 35 |
| Current (A) | 58 |
| Starting Current Ratio | 5.7 |
| P1 (W) | 31325 |
| Speed (rpm) | 3000 |
| Flanging | NEMA 6″ |
| Protection Class | IP68 |
| Cooling Flow Speed (m/s) | 0.5 |
| Power Supply Tolerance | +6%/-10% |
| Max Starts (/h) | 15 |
| Max Operating Depth (m) | 300 |
| Max Operating Temperature (bar) | 60 |
| Horizontal Operation(HP) | 7.5-50 |
Dab 35 HP Submersible Motor TR6-26 kW-400 V-T Applications
- Deep-sea water pumping
- Industrial machinery operation
- Submersible equipment
- Heavy-duty fluid transfer
Dab 35 HP Submersible Motor TR6-26 kW-400 V-T Benefits
- High power output for demanding tasks
- Excellent water and dust resistance (IP68)
- Reliable performance with multiple starts per hour
- Suitable for deep and high-temperature environments
Dab 35 HP Submersible Motor TR6-26 kW-400 V-T Price List
| No. | Name | Price |
| 1 | Dab 35 HP Submersible Motor TR6-26 kW-400 V-T Price | Contact us |
