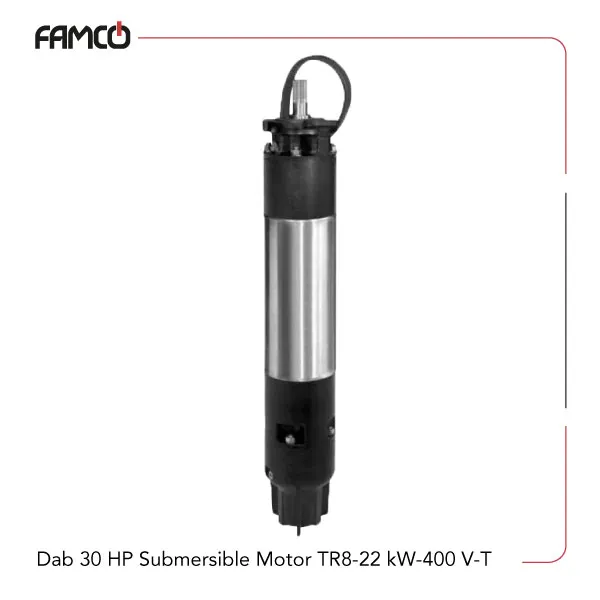

Dab 30 HP Submersible Motor TR8-22 kW-400 V-T Specifications
This product comes with a 22 kW (30 HP) motor running at 3000 rpm, built to handle demanding tasks with ease. It draws 46 amperes and has a starting current ratio of 5.3, allowing smooth startup. During operation, it consumes around 26,829 watts. The motor features a NEMA 8″ flange for secure mounting and offers an IP58 protection class, with an IP68 option available on request, making it fit for tough conditions. The cooling system maintains a flow speed of 0.5 meters per second, helping to keep temperatures in check during continuous use. This Dab submersible pump accommodates power supply variations of +6%/-10%, providing flexibility in voltage conditions. The motor can start up to 10 times per hour, making it suitable for applications that require frequent startups. Designed for operation at depths up to 300 meters and pressures up to 60 bar, this motor is capable of handling challenging underwater environments. It supports horizontal operation within a range of 30 HP to 125 HP, offering versatility across different industrial setups.
| Specification | Value |
| Power (kW) | 22 |
| Power (HP) | 30 |
| Current (A) | 46 |
| Starting Current Ratio | 5.3 |
| P1 (W) | 26829 |
| Speed (rpm) | 3000 |
| Flanging | NEMA 8″ |
| Protection class | IP58 (IP68 on request) |
| Cooling flow speed | 0.5 m/s |
| Power supply tolerance | +6%/-10% |
| Max. starts | 10/h |
| Max operating depth | 300 m |
| Max operating temperature | 60 bar |
| Horizontal operation | 30 HP – 125 HP |
Dab 30 HP Submersible Motor TR8-22 kW-400 V-T Applications
- Underwater equipment and submersible systems
- Heavy-duty industrial machinery
- Oil and gas exploration tools
- Marine and offshore operations
Dab 30 HP Submersible Motor TR8-22 kW-400 V-T Benefits
- High power output for demanding tasks
- Durable protection class suitable for harsh environments
- Flexible operation at various depths and pressures
- Supports frequent startups with reliable performance
Dab 30 HP Submersible Motor TR8-22 kW-400 V-T Price List
| No. | Name | Price |
| 1 | Dab 30 HP Submersible Motor TR8-22 kW-400 V-T Price | Contact us |
