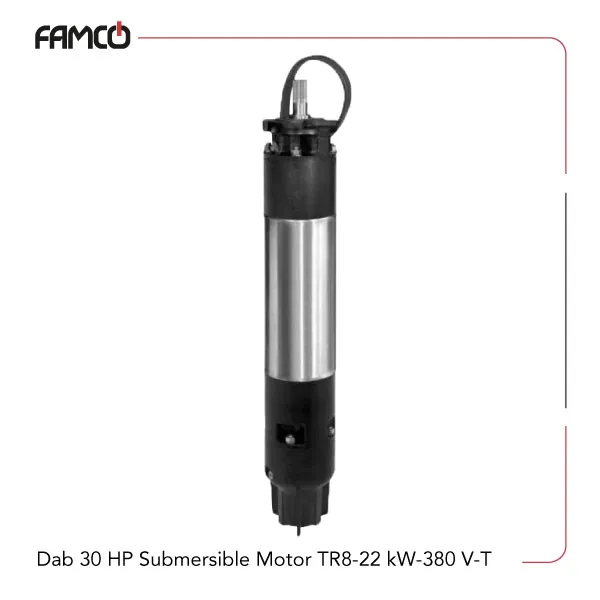

Dab 30 HP Submersible Motor TR8-22 kW-380 V-T Specifications
Dab submersible motor TR8-22 kW-380 V-T delivers a robust 22 kW (30 HP) power output, suitable for demanding applications. It operates at a speed of 1500 rpm and draws a current of 49 amperes. The motor’s starting current ratio is 4.7, ensuring reliable startup performance. It features a flanging size of NEMA 8″ for easy mounting. The protection class is IP58, with an option for IP68 upon request, providing excellent resistance against dust and water ingress. Cooling is managed with a flow speed of 0.5 meters per second, maintaining optimal operating temperatures. The motor can tolerate power supply fluctuations of +6% to -10%, ensuring stable operation in variable power conditions. It can be started up to 10 times per hour without issues. Designed for underwater or deep-sea applications, it supports a maximum operating depth of 300 meters and can handle temperatures up to 60 bar. This Dab submersible motor is suitable for horizontal operation within a power range of 30 HP to 125 HP, making it versatile for various industrial tasks requiring high durability and performance.
| Specification | Value |
| Power (kW) | 22 |
| Power (HP) | 30 |
| Current (A) | 49 |
| Starting Current Ratio | 4.7 |
| P1 (W) | 26829 |
| Speed (rpm) | 1500 |
| Flanging | NEMA 8″ |
| Protection Class | IP58(IP68 on request) |
| Cooling Flow Speed (m/s) | 0.5 |
| Power Supply Tolerance | +6%/-10% |
| Max Starts | 10/h |
| Max Operating Depth (m) | 300 |
| Max Operating Temperature (bar) | 60 |
| Horizontal Operation | 30 HP – 125 HP |
Dab 30 HP Submersible Motor TR8-22 kW-380 V-T Applications
- Water treatment plants
- Deep-sea exploration equipment
- Industrial manufacturing machinery
- Oil and gas industry equipment
Dab 30 HPSubmersible Motor TR8-22 kW-380 V-T Benefits
- High durability in harsh environments
- Reliable performance with multiple starts per hour
- Corrosion and water-resistant protection
- Versatile for various industrial applications
Dab 30 HP Submersible Motor TR8-22 kW-380 V-T Price List
| No. | Name | Price |
| 1 | Dab 30 HP Submersible Motor TR8-22 kW-380 V-T Price | Contact us |
