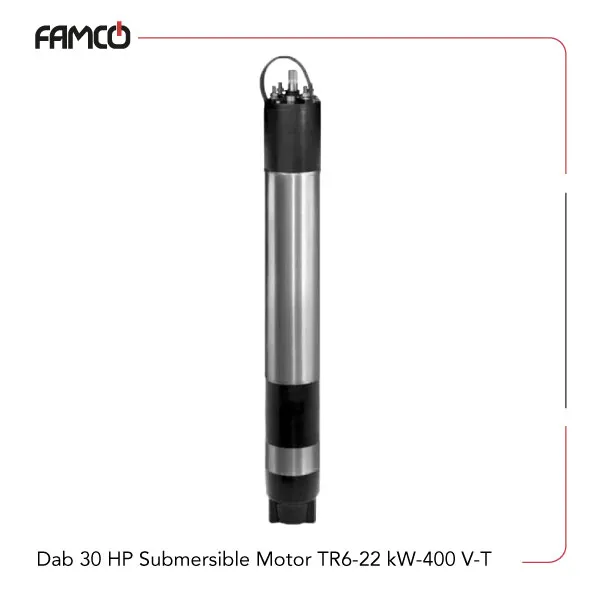

Dab 30 HP Submersible Motor TR6-22 kW-400 V-T Specifications
Dab 30 HP submersible motor TR6-22 kW-400 V-T is powered by a 22 kW (30 HP) motor, designed to handle demanding tasks. It draws 49 amperes and has a starting current ratio of 5.5, allowing smooth startup. During operation, the motor consumes approximately 26,506 watts, making it suitable for heavy-duty applications. It features a NEMA 6-inch flanging for secure and standardized mounting. The motor carries an IP68 protection rating, providing full resistance to dust and water ingress, making it well suited for harsh or submerged environments. Cooling is maintained through a flow speed of 0.5 meters per second, supporting efficient heat dissipation during continuous operation. This Dab motor accommodates power supply variations of +6% to –10% and can handle up to 15 starts per hour, making it suitable for intermittent use. It is designed to operate at depths of up to 300 meters and withstand pressures of up to 60 bar, making it ideal for underwater or extreme conditions.
| Specification | Value |
| Power (kW) | 22 |
| Power (HP) | 30 |
| Current (A) | 49 |
| Starting Current Ratio | 5.5 |
| P1(W) | 26506 |
| Flanging | NEMA 6″ |
| Protection Class | IP68 |
| Cooling Flow Speed (m/s) | 0.5 |
| Power Supply Tolerance | +6%/-10% |
| Max Starts (/h) | 15 |
| Max Operating Depth (m) | 300 |
| Max Operating Temperature (bar) | 60 |
| Horizontal Operation (HP) | 7.5-50 |
Dab 30 HP Submersible Motor TR6-22 kW-400 V-T Applications
- Underwater pumping systems
- Industrial water treatment
- Mining operations
- Offshore drilling equipment
Dab 30 HP Submersible Motor TR6-22 kW-400 V-T Benefits
- High power output for demanding tasks
- Excellent protection against dust and water
- Flexible operation with adjustable HP range
- Suitable for deep underwater environments
Dab 30 HP Submersible Motor TR6-22 kW-400 V-T Price List
| No. | Name | Price |
| 1 | Dab 30 HP Submersible Motor TR6-22 kW-400 V-T Price | Contact us |
