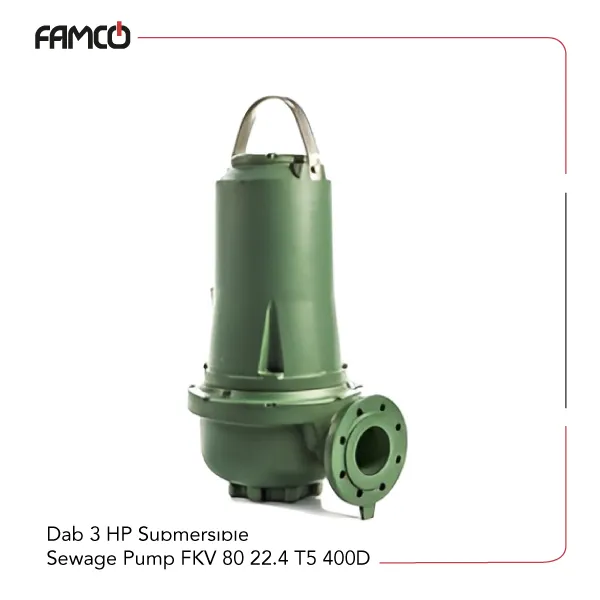

Dab 3 HP Submersible Sewage Pump FKV 80 22.4 T5 400D Specifications
This pump features a vortex impeller made of durable cast iron, designed for efficient handling of solids ranging from 65 to 100 mm. It operates within a fluid pH range of 6.5 to 12 and can manage fluid temperatures from 0°C up to 40°C. The pump can be installed at depths up to 20 meters, making it suitable for various applications. The Dab submersible pump FKV-series 80 22.4 T5 400D has a maximum delivery head of 11.8 meters and a flow rate of 1320 liters per minute, ensuring high performance. The mechanical seals are made of SiC/SiC on the pump side and SiC/Carbon on the motor side, providing reliable sealing and durability. This Dab sewage pump provides a 2.2 kW (3 HP) pumping force, supplied at 400 V three-phase voltage, this pump weighs 104 kg, indicating a robust build suitable for demanding environments.
| Specification | Value |
| Impeller Type | Vortex |
| Solid Handling | 65 – 100 mm |
| Fluid pH | 6.5- 12 |
| Fluid Temperature Range | from 0° to +40°C |
| Max installation Depth | 20 m |
| Impeller Material | cast iron |
| Mechanical seal pump side | SiC/SiC |
| Mechanical seal motor side | SiC/Carbon |
| Max delivery head | 11.8 m |
| Max flow rate | 1320 l/min |
| Three-phase voltage | 400 V |
| Power | 2.2 kW |
| Power (HP) | 3 HP |
| Weight | 104 kg |
Dab 3 HP Submersible Sewage Pump FKV 80 22.4 T5 400D Performance Curve
| m3 /h | 0 | 7.2 | 14.4 | 21.6 | 28.8 | 36 | 43.2 | 50.4 | 57.6 | 64.8 | 72 | 79.2 |
| l/min | 0 | 120 | 240 | 360 | 480 | 600 | 720 | 840 | 960 | 1080 | 1200 | 1320 |
| Head (m) | 11.8 | 11.6 | 11.3 | 10.8 | 10 | 9.1 | 8 | 6.9 | 5.8 | 4.7 | 3.7 | 2.8 |
Dab 3 HP Submersible Sewage Pump FKV 80 22.4 T5 400D Applications
- Wastewater and sewage pumping
- Industrial fluid transfer
- Drainage systems
- Flood control and drainage
Dab 3 HP Submersible Sewage Pump FKV 80 22.4 T5 400D Benefits
- Handles solids up to 100 mm easily
- Reliable and durable with cast iron and SiC seals
- High flow rate for efficient operation
- Suitable for deep installations up to 20 meters
Dab 3 HP Submersible Sewage Pump FKV 80 22.4 T5 400D Price List
| No. | Name | Price |
| 1 | Dab 3 HP Submersible Sewage Pump FKV 80 22.4 T5 400D Price | Contact us |
