Dab 3 HP Submersible Sewage Pump FKC 65 22.2 T5 400D Specifications
This pump features a single-channel impeller made of durable cast iron, designed for efficient fluid movement. It handles solids between 65 and 100 mm, making it suitable for various applications involving semi-solid materials. The Dab sewage pump operates within a pH range of 6.5 to 12, ensuring compatibility with different liquids. It can work in temperatures from 0°C up to 40°C, making it versatile for different environments. The maximum installation depth is 20 meters, allowing for deep submersions. The mechanical seals are made of SiC/SiC on the pump side and SiC/Carbon on the motor side, providing reliable sealing and durability to this Dab submersible pump during usage. It can achieve a maximum delivery head of 20 meters and a flow rate of up to 1560 liters per minute. Powered by a 400V three-phase supply, it consumes 2.2 kW (3 HP). The pump weighs 109 kg, indicating a sturdy build for this Dab sewage pump, which is useful in heavy-duty tasks.
| Specification | Value |
| Impeller Type | Single channel |
| Solid Handling | 65 – 100 mm |
| Fluid pH | 6.5- 12 |
| Fluid Temperature Range | from 0° to +40°C |
| Max installation Depth | 20 m |
| Impeller Material | cast iron |
| Mechanical seal pump side | SiC/SiC |
| Mechanical seal motor side | SiC/Carbon |
| Max delivery head | 20 m |
| Max flow rate | 1560 l/min |
| Three-phase voltage | 400 V |
| Power | 2.2 kW |
| Power (HP) | 3 HP |
| Weight | 109 kg |

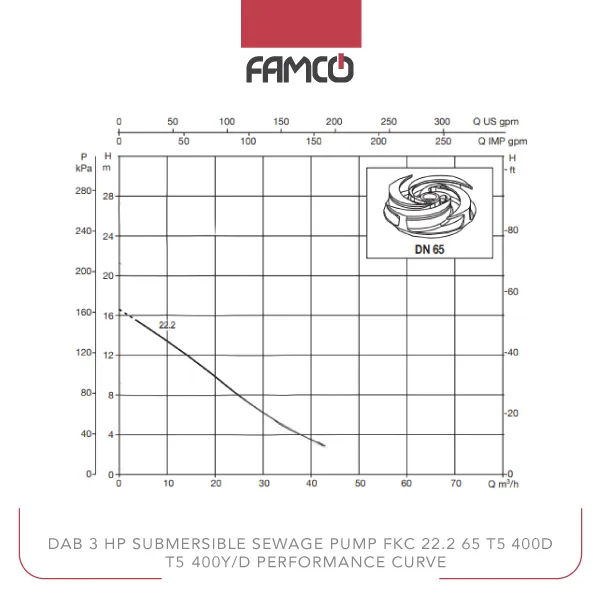

Dab 3 HP Submersible Sewage Pump FKC 65 22.2 T5 400D Performance Data
| m3 /h | 0 | 7.2 | 14.4 | 21.6 | 28.8 | 36 | 43.2 | 50.4 | 57.6 | 64.8 | 72 | 79.2 | 86.4 | 93.6 |
| l/min | 0 | 120 | 240 | 360 | 480 | 600 | 720 | 840 | 960 | 1080 | 1200 | 1320 | 1440 | 1560 |
| Head (m) | 20 | 17.8 | 17.8 | 15.9 | 14.3 | 12.8 | 11.6 | 10.4 | 9.3 | 8.3 | 7.2 | 6.1 | 4.9 | 3.6 |
Dab 3 HP Submersible Sewage Pump FKC 65 22.2 T5 400D Applications
- Wastewater and sewage pumping
- Industrial fluid transfer
- Flood control and drainage
- Deep well and borehole pumping
Dab 3 HP Submersible Sewage Pump FKC 65 22.2 T5 400D Benefits
- High flow rate for efficient fluid transfer
- Durable cast iron construction
- Reliable mechanical seals for long-term use
- Suitable for solids with large particle sizes
Dab 3 HP Submersible Sewage Pump FKC 65 22.2 T5 400D Price List
| No. | Name | Price |
| 1 | Dab 3 HP Submersible Sewage Pump FKC 65 22.2 T5 400D Price | Contact us |
