Dab 2HP Submersible Pump DIG 1500

1.5 kW (2HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: DAB Pumps, Dab Submersible Pump

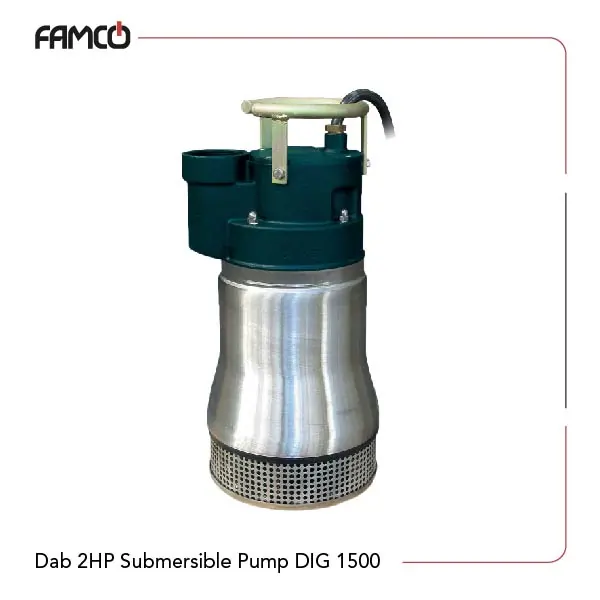

Overview of Dab 2HP Submersible Pump DIG 1500

Dab 2HP submersible pump DIG 1500 is designed for efficient water management in various settings. Its powerful construction and high protection class are top-tire when it comes to both residential and industrial applications. The power output is rated at 1.5 kW or 2 HP, making it suitable for various tasks. Whether you need to pump water from a well or manage drainage in a construction site, this device is up to the task. Its reliable performance is why it can handle demanding conditions with ease.

Dab 2HP Submersible Pump DIG 1500 Specifications

Dab 2HP submersible pump DIG 1500 features a versatile installation option with both fixed and portable setups in a vertical position. This Dab submersible pump tolerates a maximum immersion depth of 20 meters when used with the appropriate cable length. The product’s motor is well-protected with an IP 68 rating that makes it durable and resistant to water and dust particles. This pump has an insulation class of F that guarantees safe operation under various heavy tasks. The device has two poles and allows for a free passage of solids up to 6 mm without any blockage problems. It operates on a voltage range of 220-240V and a frequency of 50Hz. The head range in this product is adjustable between 4 to 13 meters for added flexibility in its application.

Specification	Value
Installation	fixed or portable, vertical position
Maximum immersion depth	20 meters (with cable of appropriate length)
Motor protection class	IP 68
Insulation class	F
Number of poles	2
Free passage of solids	6 mm
Voltage(V)	220-240
Frequency (Hz)	50
Head (m)	4-13
Power (kW)	1.5
Power (HP)	2

Dab 2HP Submersible Pump DIG 1500 Materials

Handle: Chrome Steel
Upper Cover: En Gjl 200 Cast Iron
Rotor: Shaft Aisi 420
Motor Body: Aisi 304
Mechanical Seal On Motor Side: Carbon/Alumina
Mechanical Seal On Pump: Silicon Carbide/Silicon Carbide
Impeller: Aisi Astm 532-80

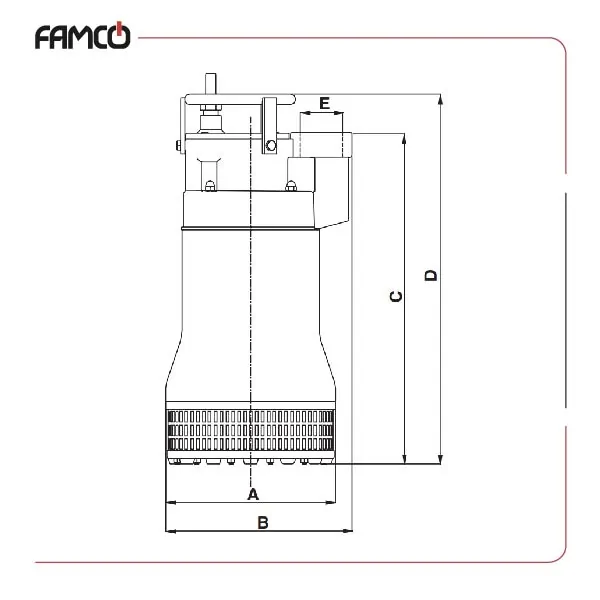

Dab 2HP Submersible Pump DIG 1500 Dimensions and Weight

Dimensions (mm)
A	250
B	270
C	480
D	530
E DNM	2 1/2” – F
Weight (kg)	35

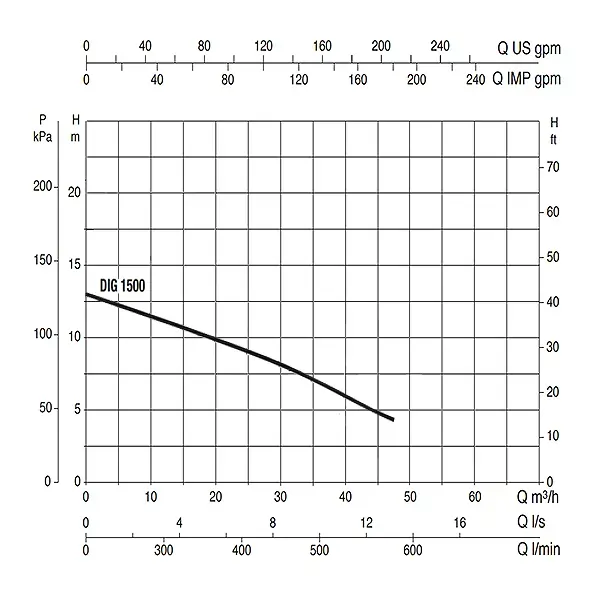

Dab 2HP Submersible Pump DIG 1500 Performance Data

l/min	0	6	12	18	24	30	36	42	48
m3 /h	0	100	200	300	400	500	600	700	800
H (m)	13	–	11	10	9	8	6.8	5.3	4

Dab 2HP Submersible Pump DIG 1500 Applications

Water pumping from wells
Drainage in construction sites
Irrigation systems
Industrial water management

Dab 2HP Submersible Pump DIG 1500 Benefits

Versatile installation options
High protection against water and dust
Adjustable head height for various applications
Reliable power output for demanding tasks

Dab 2HP Submersible Pump DIG 1500 Price List

No.	Name	Price
1	Dab 2HP Submersible Pump DIG 1500 Price	Contact us

Maximum immersion depth (m)	20
Degree of Protection	IP68
Insulation Class	F
Number of Poles	2
Voltage (V)	220-240
Frequency (Hz)	50
Maximum Delivery Head (m)	13
Power (kW)	1.5
Power (HP)	2
Mechanical Seal	Carbon/Alumina, Silicon Carbide/Silicon Carbide
Pump Body	AISI 304
Impeller Material	Aisi Astm 532-80
Brand	Dab
