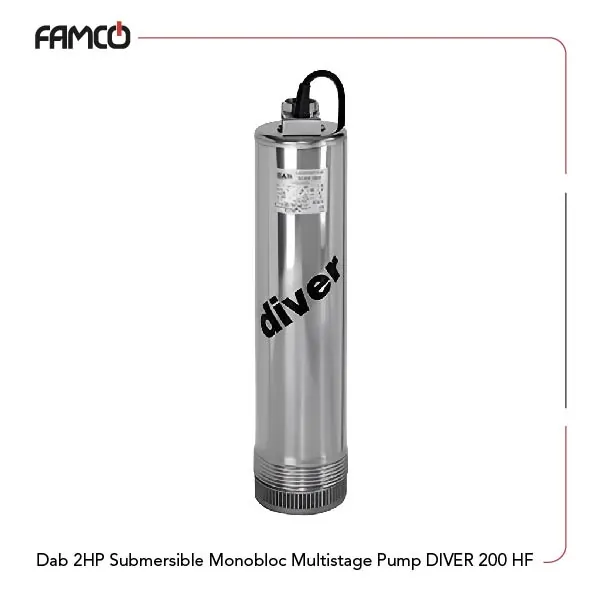

Dab 2HP Submersible Monobloc Multistage Pump DIVER 200 HF Specifications
Dab 2HP submersible monobloc multistage pump DIVER 200 HF is a powerful pump with a built-in motor rated at 1.5 kW (2 HP). It operates efficiently in a height range of 20 to 59 meters. The liquid temperature this Dab pump handles ranges from 0 °C to +35 °C which encompasses most applications. The maximum immersion depth in this sturdy product is 20 meters to increase adaptability in installation. This pump’s motor is protected with an IP 68 rating, which essentially means it is dust-tight and withstands immersion in water to a point. The motor protection rating is F for a safe run time under different conditions. This product could be installed in wells, tanks, and cisterns, as long as it is positioned vertically. It supports both single-phase (230 V / 50 Hz) and three-phase (400 V / 50 Hz) standard voltages to work with different setups. This Dab submersible pump features a lip seal made of NBR 70, along with a diffuser and impeller made from durable technopolymer for enhanced sturdiness. The shaft with rotor is constructed from AISI 304 stainless steel to make it resistant to corrosion and wear.
| Specification | Value | |
| Power (kW) | 1.5 | |
| Power (HP) | 2 | |
| H (m) | 20-59 | |
| Liquid temperature range | from 0 °C to +35 °C | |
| Max. immersion depth | 20 m | |
| Motor protection class | IP 68 | |
| Motor protection rating | F | |
| Standard voltage | single-phase | 230 V / 50 Hz |
| three-phase | 400 V / 50 Hz | |
| No. of poles | 2 | |
Dab 2HP Submersible Monobloc Multistage Pump DIVER 200 HF Materials
- Lip seal: NBR 70
- Diffuser: technopolymer
- Impeller: technopolymer
- Shaft with rotor: AISI 304 STAINLESS STEEL X5CrNi1810 UNI 10088-3
Dab 2HP Submersible Monobloc Multistage Pump DIVER 200 HF Dimensions and Weight
| Dimensions (mm) | Weight (kg) | |
| Ø | H | 15.5 |
| 127 | 608 | |
Dab 2HP Submersible Monobloc Multistage Pump DIVER 200 HF Technical Data
| M3/h | 0 | 1.5 | 3 | 4.5 | 6 | 7.5 | 9 | 10.5 | 12 |
| l/min | 0 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 |
| H (m) | 59 | 55 | 51 | 48 | 44 | 39 | 34 | 28 | 20 |

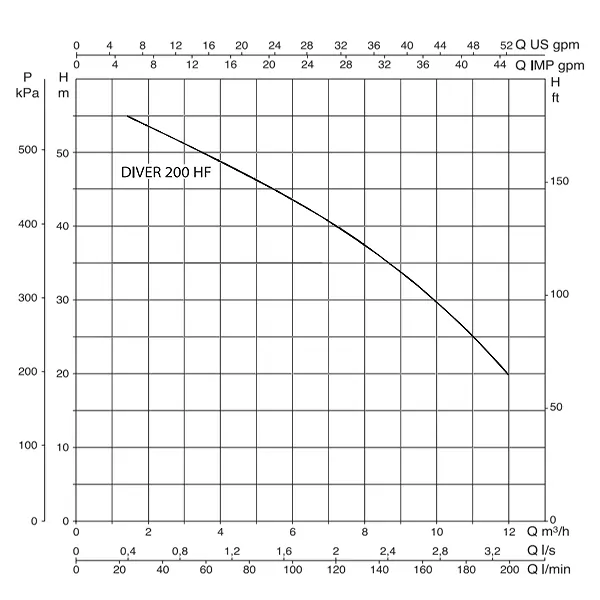

Dab 2HP Submersible Monobloc Multistage Pump DIVER 200 HF Performance Curve
Dab 2HP Submersible Monobloc Multistage Pump DIVER 200 HF Applications
- Water supply in residential buildings
- Irrigation systems for agriculture
- Drainage in construction sites
- Water circulation in aquaculture
Dab 2HP Submersible Monobloc Multistage Pump DIVER 200 HF Benefits
- High efficiency with a powerful motor
- Durable construction for long-lasting use
- Versatile installation options
- Safe operation with high protection ratings
Dab 2HP Submersible Monobloc Multistage Pump DIVER 200 HF Price List
| No. | Name | Price |
| 1 | Dab 2HP Submersible Monobloc Multistage Pump DIVER 200 HF Price | Contact us |
