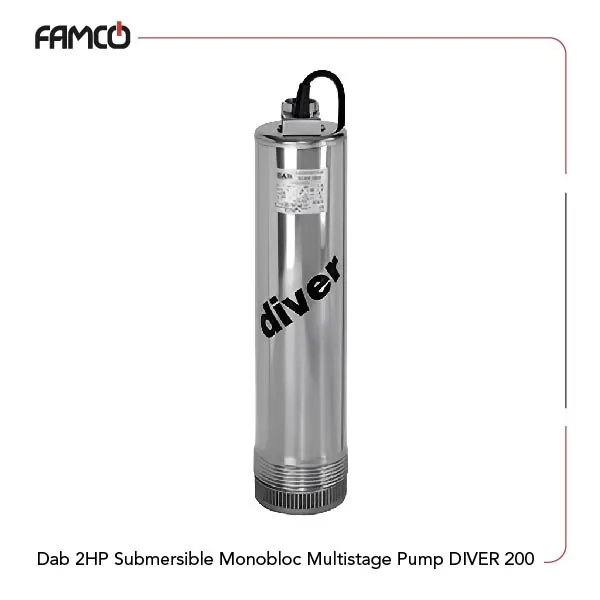

Dab 2HP Submersible Monobloc Multistage Pump DIVER 200 Specifications
This product features a power output of 1.5 kW, equivalent to 2 HP, making it suitable for various applications. This Dab submersible borehole pump operates efficiently within a liquid temperature range from 0 °C to +35 °C. The maximum immersion depth is 20 meters to reach maximum versatility in installation in wells, tanks, and cisterns. The product’s built-in motor is protected with an IP 68 rating that indicates durability in challenging environments. It supports both single-phase (230 V / 50 Hz) and three-phase (400 V / 50 Hz) standard voltages. The components include a lip seal made of NBR 70, a diffuser and impeller crafted from technopolymer, and a shaft with rotor made from AISI 304 stainless steel; all durable materials put together in a single unit.
| Specification | Value | |
| Power (kW) | 1.5 | |
| Power (HP) | 2 | |
| H (m) | 21-101 | |
| Liquid temperature range | from 0 °C to +35 °C | |
| Max. immersion depth | 20 m | |
| Motor protection class | IP 68 | |
| Motor protection rating | F | |
| Standard voltage | single-phase | 230 V / 50 Hz |
| three-phase | 400 V / 50 Hz | |
| No. of poles | 2 | |
Dab 2HP Submersible Monobloc Multistage Pump DIVER 200 Materials
- Lip seal: NBR 70
- Diffuser: technopolymer
- Impeller: technopolymer
- Shaft with rotor: AISI 304 STAINLESS STEEL X5CrNi1810 UNI 10088-3
Dab 2HP Submersible Monobloc Multistage Pump DIVER 200 Dimensions and Weight
| Dimensions (mm) | Weight (kg) | |
| Ø | H | 15.8 |
| 127 | 648 | |
Dab 2HP Submersible Monobloc Multistage Pump DIVER 200 Technical Data
| M3/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.8 |
| l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
| H (m) | 101 | 96 | 90 | 85 | 70 | 60 | 47 | 35 | 21 |

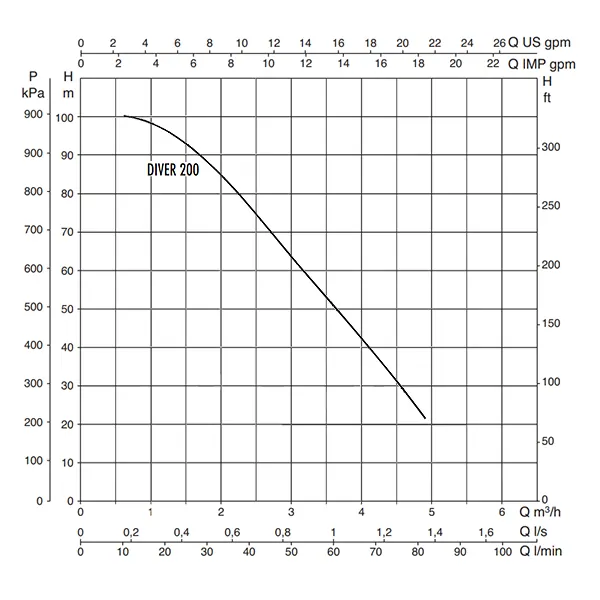

Dab 2HP Submersible Monobloc Multistage Pump DIVER 200 Performance Curve
Dab 2HP Submersible Monobloc Multistage Pump DIVER 200 Applications
- Water extraction from wells
- Irrigation systems
- Water management in tanks
- Drainage in cisterns
Dab 2HP Submersible Monobloc Multistage Pump DIVER 200 Benefits
- High efficiency with 1.5 kW power output
- Durable construction with stainless steel and technopolymer components
- Versatile installation options in various environments
- Reliable operation in a wide temperature range
Dab 2HP Submersible Monobloc Multistage Pump DIVER 200 Price List
| No. | Name | Price |
| 1 | Dab 2HP Submersible Monobloc Multistage Pump DIVER 200 Price | Contact us |
