Dab 28 HP Submersible Sewage Pump FEKA 6300.4T Specifications
This pump features a single-channel, closed impeller made of durable cast iron, designed for heavy-duty applications. It can handle liquids with pH levels from 6 to 11 and operate efficiently within a temperature range of 0°C to 40°C. The pump allows for a free solids passage of 95 to 108 mm, so this Dab sewage pump is suitable for handling semi-solid materials. It can be installed at depths up to 20 meters, either fixed with a coupling device or freely in a vertical position. Designed for continuous operation when fully submerged, this Dab submersible pump is powered by a 400 V three-phase supply. The Dab sewage pump FEKA series, 6300.4T, can deliver a maximum head of 26 meters and flow rates up to 7000 liters per minute. Weighing 340 kg, it is built for robust industrial use, combining high performance with reliability.
| Specification | Value |
| Type of impeller | single-channel, closed |
| Free solids passage (mm) | 95-108 |
| pH of the liquid | 6 to 11 |
| Liquid temperature range | 0°C to +40°C |
| Maximum installation depth | 20 metres |
| Installation | fixed using a coupling device, or free in the vertical position |
| Continuous duty | completely submerged pump |
| Impeller material | cast iron |
| Three-phase voltage | 400 V |
| Maximum delivery head (m) | 26 |
| Maximum flow rate (l/min) | 7000 |
| Power | 21 kW / 28 HP |
| Weight | 340 kg |

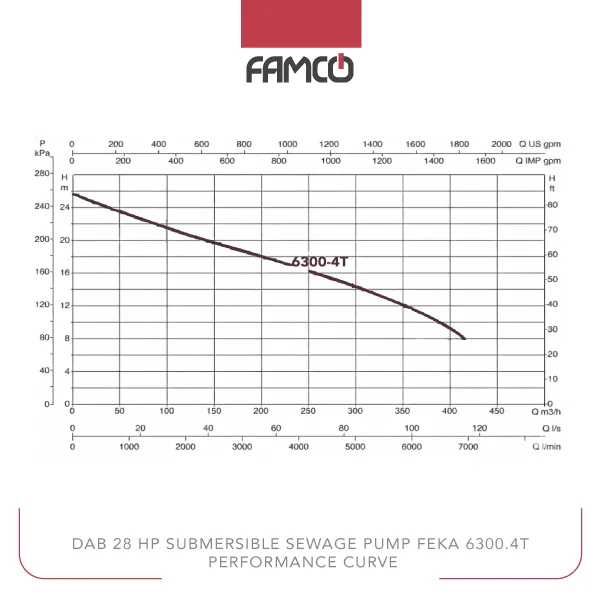

Dab 28 HP Submersible Sewage Pump FEKA 6300.4T Performance Curve
| Q=m3 /h | 0 | 24 | 36 | 48 | 60 | 72 | 90 | 108 | 126 | 150 | 180 | 210 | 240 | 270 | 300 | 360 | 420 |
| Q=l/mi | 0 | 400 | 600 | 800 | 1000 | 1200 | 1500 | 1800 | 2100 | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | 6000 | 7000 |
| H (m) | 26 | 24 | 23.8 | 23.4 | 23 | 22 | 21 | 20.5 | 19.8 | 19 | 18 | 16.8 | 16 | 14.4 | 12.3 | 8 |
Dab 28 HP Submersible Sewage Pump FEKA 6300.4T Applications
- Wastewater and sewage transfer
- Industrial water pumping
- Flood control and drainage
- Construction site dewatering
Dab 28 HP Submersible Sewage Pump FEKA 6300.4T Benefits
- High flow capacity for large volume transfer
- Durable cast iron construction ensures longevity
- Flexible installation options for different setups
- Handles solids efficiently with wide passage size
Dab 28 HP Submersible Sewage Pump FEKA 6300.4T Price List
| No. | Name | Price |
| 1 | Dab 28 HP Submersible Sewage Pump FEKA 6300.4T Price | Contact us |
