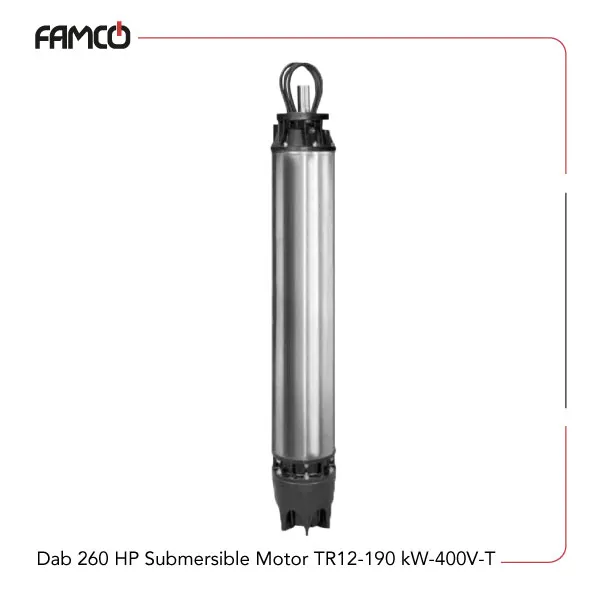

Dab 260 HP Submersible Motor TR12-190 kW-400V-T Specifications
This powerful motor delivers 190 kW (260 HP) with a current draw of 371 amperes. It operates at a speed of 3000 RPM and has a power factor of 0.8, ensuring efficient energy use. The motor’s efficiency is rated at 88%, making it suitable for demanding applications. It features a flanging size of 12 inches and is protected by an IP58 rating, with an option for IP68 upon request. The cooling system maintains a flow speed of 0.5 meters per second, helping to keep the motor cool during operation. The power supply can tolerate fluctuations of +6% to -10%, providing stability in various environments. It can be started up to 5 times per hour without issues. This Dab submersible motor is designed for deep underwater use, with a maximum operating depth of 300 meters and can withstand pressures up to 60 bar. It is suitable for horizontal operation within a power range of 180 to 260 HP, making it ideal for heavy-duty industrial and marine applications.
| Specification | Value |
| Power (kW) | 190 |
| Power (HP) | 260 |
| Current (A) | 371 |
| Starting Current Ratio | 6.2 |
| P1 (W) | 215909 |
| Speed (rpm) | 3000 |
| Power Factor (Cos φ) | 0.8 |
| Efficiency (η %) | 88 |
| Flanging(inches) | 12 |
| Protection class | IP58 (IP68 on request) |
| Cooling flow speed (m/s.) | 0.5 |
| Power supply tolerance | +6% / -10% |
| Max starts per hour | 5 |
| Max operating depth (m) | 300 |
| Max operating pressure (bar) | 60 |
| Horizontal operation (HP) | 180 – 260 |
Dab 260 HP Submersible Motor TR12-190 kW-400V-T Applications
- Deep-sea water pumping systems
- Industrial machinery requiring high power
- Marine propulsion systems
- Heavy-duty underwater equipment
Dab 260 HP Submersible Motor TR12-190 kW-400V-T Benefits
- High efficiency reduces energy costs
- Robust protection for harsh environments
- Suitable for deep water and high-pressure use
- Reliable performance with multiple start cycles
Dab 260 HP Submersible Motor TR12-190 kW-400V-T Price List
| No. | Name | Price |
| 1 | Dab 260 HP Submersible Motor TR12-190 kW-400V-T Price | Contact us |
