Dab 260 HP Submersible Motor TR10-190 kW-400 V-T Specifications

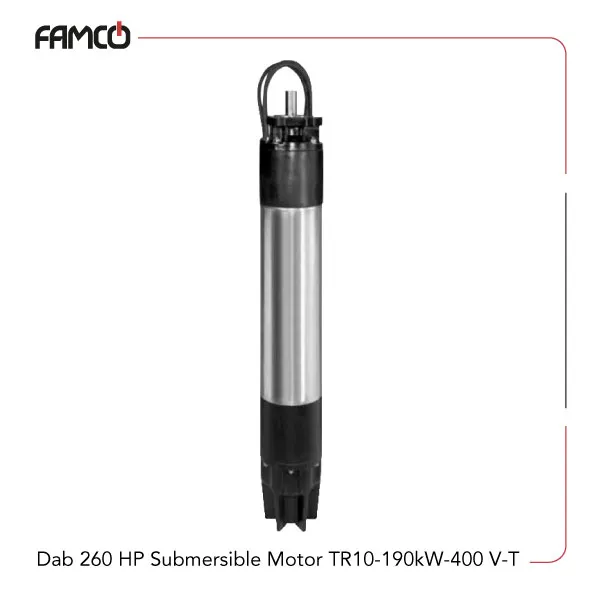

Dab submersible motor TR10-190 kW-400 V-T brings strong performance to demanding industrial settings, delivering 190 kW (260 HP) and drawing 405 A during operation. With a starting current ratio of 5.9 and an operating consumption of 218,391 W, it provides the force needed for heavy-duty pumping and fluid-movement tasks. This Dab motor reaches 3000 rpm and comes with a 10-inch flanging, allowing quick, straightforward installation in a variety of system layouts. Its IP58 protection class supports operation in challenging environments, with an optional IP68 upgrade for projects requiring an even higher level of environmental resistance. A cooling flow speed of 0.5 m/s keeps temperatures within an optimal range, even during long running periods. The power supply tolerance of +6%/-10% accommodates common voltage fluctuations, and the motor can be started up to 8 times per hour without performance loss.
| Specification | Value |
| Power (kW) | 190 |
| Power (HP) | 260 |
| Current (A) | 405 |
| Starting Current Ratio | 5.9 |
| P1 (W) | 218391 |
| Speed (rpm) | 3000 |
| Flanging | 10″ |
| Protection class | IP58 (IP68 on request) |
| Cooling flow speed | 0.5 m/s |
| Power supply tolerance | +6%/-10% |
| Max. starts | 8/h |
| Max operating depth | 300 m |
| Max operating temperature | 60 bar |
| Horizontal operation | 100 HP-230 HP |
Dab 260 HP Submersible Motor TR10-190 kW-400 V-T Applications
- Deep-sea underwater equipment
- Industrial pumping systems
- Marine propulsion systems
- Heavy-duty manufacturing machinery
Dab 260 HP Submersible Motor TR10-190 kW-400 V-T Benefits
- High power output for demanding tasks
- Excellent durability with IP58/IP68 protection
- Reliable cooling system for continuous operation
- Versatile for various industrial environments
Dab 260 HP Submersible Motor TR10-190 kW-400 V-T Price List
| No. | Name | Price |
| 1 | Dab 260 HP Submersible Motor TR10-190 kW-400 V-T Price | Contact us |
