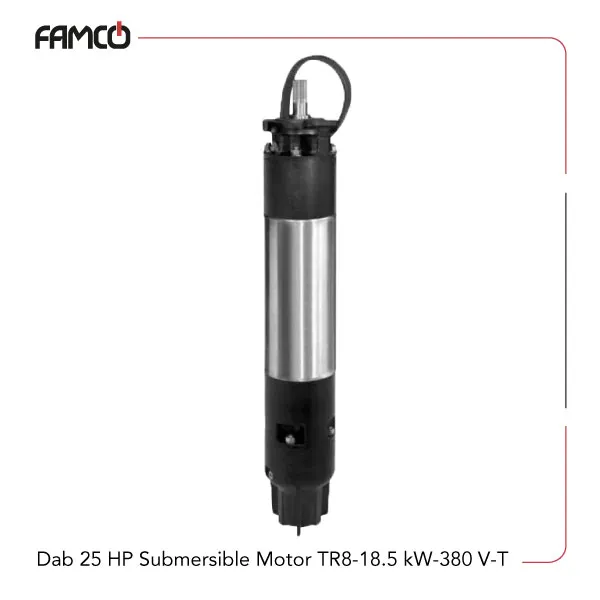

Dab 25 HP Submersible Motor TR8-18.5 kW-380 V-T Specifications
Dab submersible motor TR8-18.5 kW-380 V-T is built with an 18.5 kW (25 HP) motor suited for demanding applications. It runs at 1500 rpm and draws 41 amperes during operation. The starting current ratio is 4.7, which supports smooth and consistent motor startup. Power consumption during use is approximately 22,561 watts. A NEMA 8″ flanging is included to allow steady and accurate mounting within a range of system configurations. This Dab submersible motor carries an IP58 protection class, and an IP68 option is available for situations where even stronger environmental shielding is needed. Cooling is maintained through a flow speed of 0.5 meters per second to keep temperatures under control during long operating cycles. The power supply can handle input variations from +6% to -10%, giving the system some flexibility when voltage conditions fluctuate. The motor can be started up to 10 times per hour without difficulty.
| Specification | Value |
| Power (kW) | 18.5 |
| Power (HP) | 25 |
| Current (A) | 41 |
| Starting Current Ratio | 4.7 |
| P1 (W) | 22561 |
| Speed (rpm) | 1500 |
| Flanging | NEMA 8″ |
| Protection class | IP58 (IP68 on request) |
| Cooling flow speed | 0.5 m/s |
| Power supply tolerance | + 6%/-10% |
| Max. starts | 10/h |
| Max operating depth | 300 m |
| Max operating temperature | 60 bar |
| Horizontal operation | 30 HP – 125 HP |
Dab 25 HP Submersible Motor TR8-18.5 kW-380 V-T Applications
- Underwater exploration and research
- Deep-sea oil and gas extraction
- Industrial pumping systems
- Marine equipment and machinery
Dab 25 HP Submersible Motor TR8-18.5 kW-380 V-T Benefits
- High power output for demanding tasks
- Excellent protection against harsh environments
- Reliable cooling system for continuous use
- Versatile for various deep-sea applications
Dab 25 HP Submersible Motor TR8-18.5 kW-380 V-T Price List
| No. | Name | Price |
| 1 | Dab 25 HP Submersible Motor TR8-18.5 kW-380 V-T Price | Contact us |
