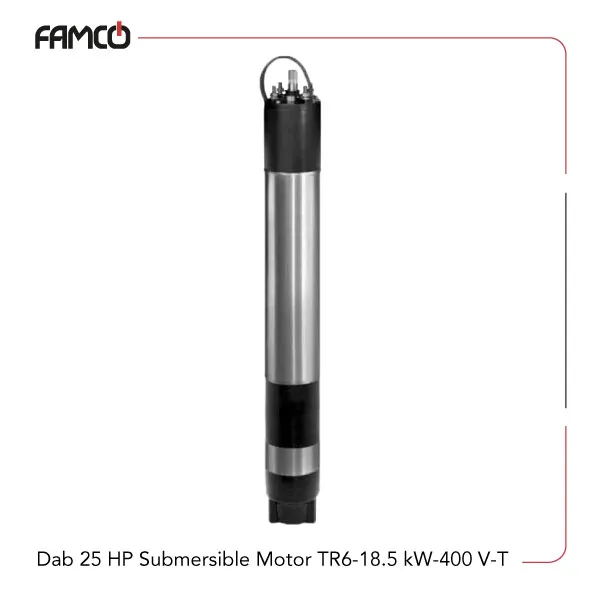

Dab 25 HP Submersible Motor TR6-18.5 kW-400 V-T Specifications
This product features a powerful 18.5 kW (25 HP) motor, capable of delivering high performance in demanding environments. It operates at a speed of 3000 rpm and draws a current of 39 amperes. The starting current ratio is 5.3, ensuring reliable startup under various conditions. This Dab motor consumes approximately 22024 watts during operation. It is equipped with a NEMA 6″ flanging for secure and standardized mounting. The protection class is IP68, making it highly resistant to dust and water ingress, suitable for harsh environments. Cooling is managed with a flow speed of 0.5 meters per second, ensuring efficient thermal regulation. The power supply tolerance allows for a variation of +6% to -10%, providing flexibility in different electrical setups. The maximum number of starts per hour is 15, which supports frequent operation cycles. It can operate at depths up to 300 meters and withstand temperatures up to 60 bar, making it ideal for underwater or deep-sea applications. Horizontal operation ranges from 7.5 to 50 HP, offering versatility for various industrial tasks.
| Specification | Value |
| Power (kW) | 18.5 |
| Power (HP) | 25 |
| Current (A) | 39 |
| Starting Current Ratio | 5.3 |
| P1 (W) | 22024 |
| Speed (rpm) | 3000 |
| Flanging | NEMA 6″ |
| Protection Class | IP68 |
| Cooling Flow Speed (m/s) | 0.5 |
| Power Supply Tolerance | +6%/-10% |
| Max Starts (/h) | 15 |
| Max Operating Depth (m) | 300 |
| Max Operating Temperature (bar) | 60 |
| Horizontal Operation(HP) | 7.5-50 |
Dab 25 HP Submersible Motor TR6-18.5 kW-400 V-T Applications
- Deep-sea water pumping
- Industrial machinery operation
- Underwater exploration equipment
- Heavy-duty industrial processes
Dab 25 HP Submersible Motor TR6-18.5 kW-400 V-T Benefits
- High power output for demanding tasks
- Excellent water and dust resistance with IP68 rating
- Flexible operation with a wide HP range
- Reliable start-up with a high number of cycles
Dab 25 HP Submersible Motor TR6-18.5 kW-400 V-T Price List
| No. | Name | Price |
| 1 | Dab 25 HP Submersible Motor TR6-18.5 kW-400 V-T Price | Contact us |
