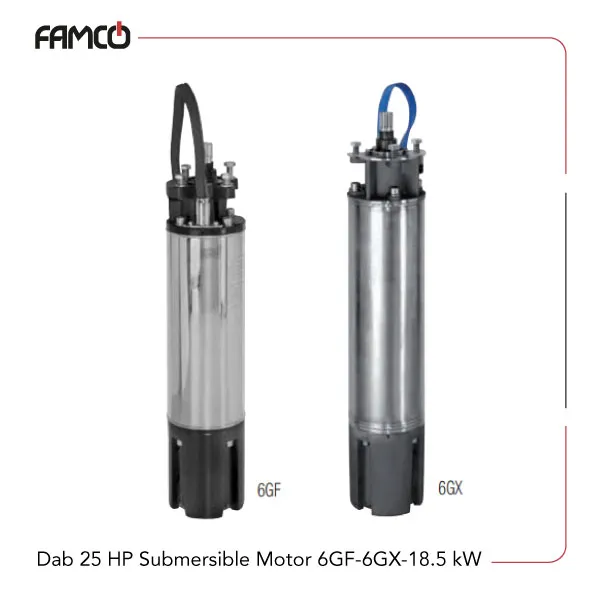

Dab 25 HP Submersible Motor 6GF/6GX-18.5 kW Specifications
The presented Dab submersible motor 6GF/6GX-18.5 kW offers a strong 18.5 kW (25 HP) power output, suitable for demanding industrial applications. It operates at a speed of 3000 rpm, providing reliable performance. The current draw is 71 amperes, with a starting current ratio of 5.2, ensuring efficient startup. The motor’s power consumption at P1 is 22,300 watts. It features a NEMA 6-inch flanging for secure mounting and has an insulation class rated F, which supports high-temperature environments. The protection class is IP68, making it highly resistant to dust and water ingress, ideal for harsh conditions. Cooling is maintained with a flow speed of at least 0.3 meters per second at 35°C, ensuring optimal thermal management. The power supply can tolerate variations of +6% to -10%, providing flexibility in different electrical setups. The motor can handle up to 25 starts per hour, suitable for intermittent operation. It is designed for underwater or deep-sea applications with a maximum operating depth of 300 meters. Additionally, it can operate horizontally within a power range of 5.5 HP to 50 HP, making it versatile for various machinery and equipment.
| Model | 230 | 400 | 415 |
| Current (A) | 71 | 41 | 42 |
| Starting Current Ratio | 5.2 | 5.2 | 5.5 |
| Power (kW) | 18.5 | ||
| Power (HP) | 25 | ||
| P1 (W) | 22300 | ||
| Speed (rpm) | 3000 | ||
| Flanging | NEMA 6″ | ||
| Insulation Class | F | ||
| Protection Class | IP68 | ||
| Cooling Flow Speed | min. 0,3 m/s 35 °C | ||
| Power Supply Tolerance | +6%/-10% | ||
| Max Starts | 25/h | ||
| Max Operating Depth | 300 m | ||
| Horizontal Operation | 5,5 HP – 50 HP | ||
Dab 25 HP Submersible Motor 6GF/6GX-18.5 kW Applications
- Underwater pumping systems
- Industrial mixers and agitators
- Deep-sea exploration equipment
- Heavy-duty industrial machinery
Dab 25 HP Submersible Motor 6GF/6GX-18.5 kW Benefits
- High durability with IP68 protection
- Reliable performance at high depths
- Efficient cooling system for continuous operation
- Versatile for various industrial uses
Dab 25 HP Submersible Motor 6GF/6GX-18.5 kW Price List
| No. | Name | Price |
| 1 | Dab 25 HP Submersible Motor 6GF/6GX-18.5 kW Price | Contact us |
