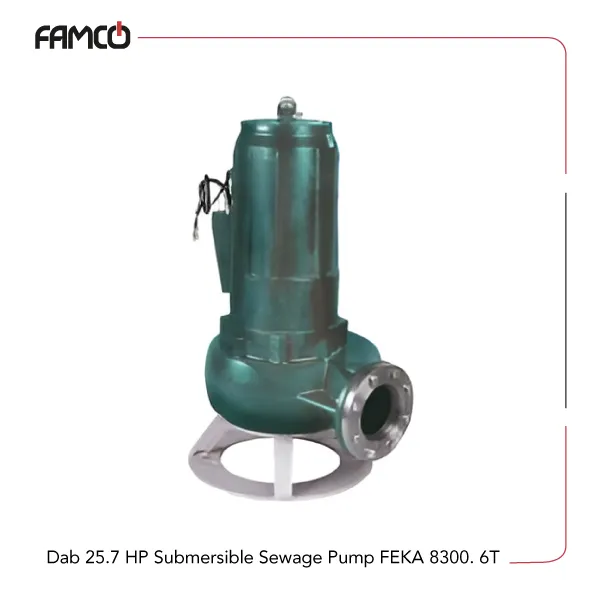

Dab 25.7 HP Submersible Sewage Pump FEKA 8300.6T Specifications
The FEKA 8300.6T is designed to push very large volumes through wastewater channels, moving up to thirteen thousand liters per minute when fully submerged. Its cast iron hydraulics and three channel impeller give it the stability needed for continuous operation in municipal stations, flood control tanks, and industrial effluent pits. Many engineers working on heavy flow systems choose Dab sewage pumps because the geometry of the impeller helps limit obstruction during long shifts. This model can work at depths up to twenty meters and tolerates a broad pH range along with common sewage temperatures, which makes planning installations much easier. When set on a fixed coupling device, the unit supports fast retrieval for checks or maintenance, while free standing vertical placement works well in temporary or mobile setups. The high power rating, wide solids passage, and consistent throughput place it among the stronger choices for large infrastructure projects that rely on Dab submersible pumps for predictable performance over long cycles.
| Specification | Value |
| Impeller Type | three-channel, closed |
| Free Passage | 80 mm |
| pH of Liquid | 6 to 11 |
| Liquid Temperature Range | 0°C to +40°C |
| Max. Immersion Depth | 20 m |
| Installation | fixed using a coupling device, or free in the vertical position |
| Operation | Continuous duty with completely submerged pump |
| Impeller Material | cast-iron |
| Max. Delivery Head | 17 m |
| Max. Flow Rate | 13000 l/min |
| Three-phase Voltage | 400 V |
| Power | 19.3 kW |
| Power (HP) | 25.7 HP |
| Weight | 480 kg |

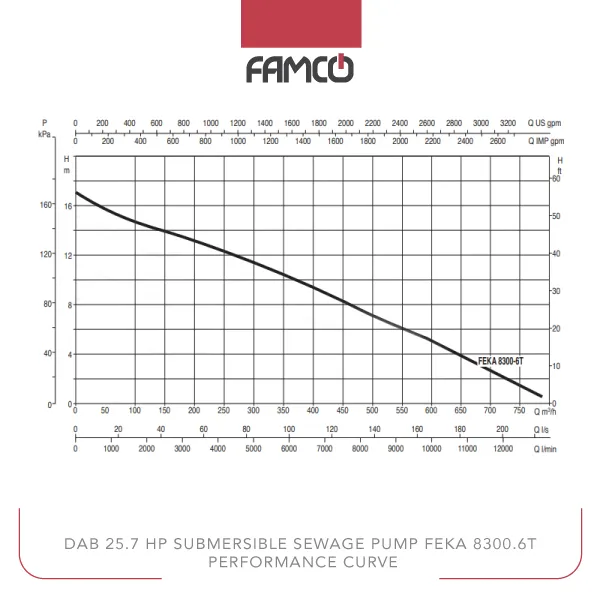

Dab 25.7 HP Submersible Sewage Pump FEKA 8300.6T Performance Data
| m3 /h | 0 | 24 | 36 | 48 | 60 | 72 | 90 | 108 | 126 | 150 | 180 | 210 | 240 | 270 | 300 | 360 | 420 | 480 | 600 | 780 |
| l/min | 0 | 400 | 600 | 800 | 1000 | 1200 | 1500 | 1800 | 2100 | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 | 6000 | 7000 | 8000 | 10000 | 13000 |
| Head (m) | 17 | 16.6 | 16.2 | 16 | 15.6 | 15 | 14.7 | 14.5 | 14.2 | 13.8 | 13.5 | 13 | 12.4 | 12 | 11.4 | 10 | 9 | 7.6 | 5 | 1.8 |
Dab 25.7 HP Submersible Sewage Pump FEKA 8300.6T Applications
- Industrial water transfer
- Drainage and flood control
- Wastewater management
- Large-scale irrigation systems
Dab 25.7 HP Submersible Sewage Pump FEKA 8300.6T Benefits
- High flow rate of up to 13,000 liters per minute
- Durable cast-iron impeller for long-lasting performance
- Flexible installation options for various setups
- Suitable for liquids with pH 6 to 11 and temperatures up to 40°C
Dab 25.7 HP Submersible Sewage Pump FEKA 8300.6T Price List
| No. | Name | Price |
| 1 | Dab 25.7 HP Submersible Sewage Pump FEKA 8300.6T Price | Contact us |
