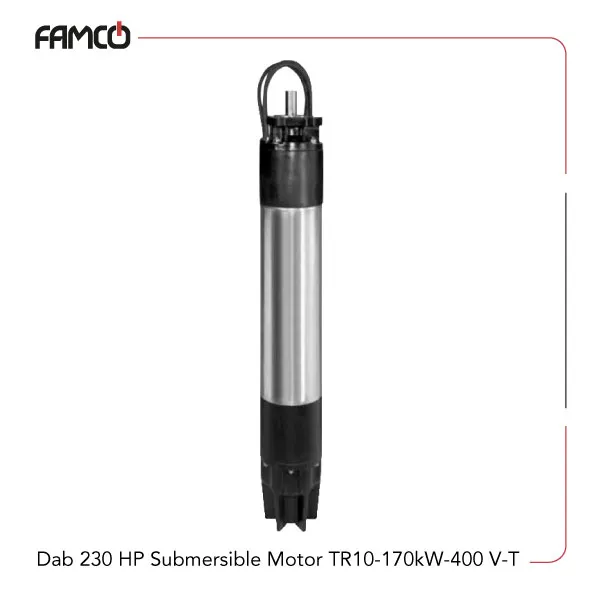

Dab 230 HP Submersible Motor TR10-170 kW-400 V-T

Dab 230 HP Submersible Motor TR10-170 kW-400 V-T Specifications

This high-performance motor delivers 170 kW (230 HP) of power, suitable for demanding industrial applications. It operates at a speed of 3000 rpm and has a flanging size of 10 inches. The motor’s protection class is IP58, with an option for IP68 upon request, ensuring durability in harsh environments. It can handle a maximum operating depth of 300 meters and withstand pressures up to 60 bar. The cooling system maintains a flow speed of 0.5 meters per second, helping to keep the motor cool during operation. The power supply tolerance ranges from +6% to -10%, providing flexibility in various power conditions. It can start up to 8 times per hour, making it suitable for applications requiring frequent startups. This Dab motor is designed for horizontal operation within the power range of 100 HP to 230 HP, making it versatile for different industrial needs. The current draw is 348 amperes, and the motor’s P1 power consumption is approximately 195,402 watts, indicating high efficiency and power output. Overall, this motor combines robust construction with advanced features to ensure reliable performance in challenging environments, including underwater or deep-sea applications, thanks to its high depth and pressure ratings.

Dab 230 HP Submersible Motor TR10-170 kW-400 V-T Applications

• Underwater exploration and subsea equipment
• Heavy industrial machinery
• Deep-sea oil and gas extraction
• Marine propulsion systems

Dab 230 HP Submersible Motor TR10-170 kW-400 V-T Benefits

• High power output for demanding tasks
• Durable protection against harsh environments
• Reliable cooling system for continuous operation
• Suitable for deep-sea and underwater use
