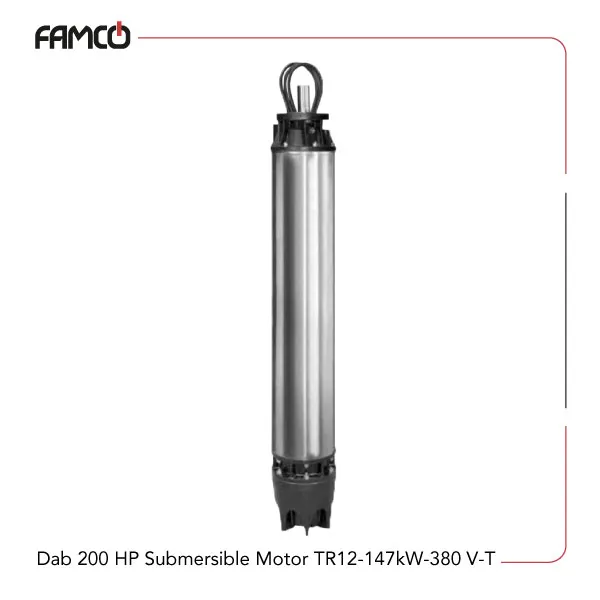

Dab 200 HP Submersible Motor TR12-147 kW-380 V-T Specifications
Dab submersible motor TR12-147 kW-380 V-T delivers a power output of 147 kW (200 HP) and operates at a speed of 1500 rpm. It features a 12‑inch flanging for secure mounting. The motor has a protection class of IP58, with an option for IP68 upon request, ensuring durability in harsh environments. It draws 285 amperes and has a starting current ratio of 5.9, providing reliable startup performance. The power supply tolerance is +6% / -10%, allowing flexibility in voltage variations. This Dab submersible motor can be started up to five times per hour, making it suitable for applications requiring frequent starts. Its cooling system maintains a flow speed of 0.5 m/s for effective heat dissipation during operation. Designed for underwater use, it can function at depths up to 300 meters and withstand pressures up to 60 bar. The motor is ideal for horizontal operation within a power range of 180 HP to 260 HP, making it highly versatile for industrial and marine applications.
| Specification | Value |
| Power (kW) | 147 |
| Power (HP) | 200 |
| Current (A) | 285 |
| Starting Current Ratio | 5.9 |
| P1 (W) | 165169 |
| Speed (rpm) | 1500 |
| Flanging | 12″ |
| Protection Class | IP58 (IP68 on request) |
| Cooling Flow Speed | 0.5 m/s |
| Power Supply Tolerance | +6%/-10% |
| Max Starts | 5/h |
| Max Operating Depth | 300 m |
| Max Operating Temperature | 60 bar |
| Horizontal Operation | 180 HP – 260 HP |
Dab 200 HP Submersible Motor TR12-147 kW-380 V-T Applications
- Offshore oil and gas drilling equipment
- Underwater mining machinery
- Heavy-duty industrial pumps
- Marine propulsion systems
Dab 200 HP Submersible Motor TR12-147 kW-380 V-T Benefits
- High durability in harsh environments
- Reliable performance with frequent starts
- Versatile for various industrial uses
- Effective cooling system for continuous operation
Dab 200 HP Submersible Motor TR12-147 kW-380 V-T Price List
| No. | Name | Price |
| 1 | Dab 200 HP Submersible Motor TR12-147 kW-380 V-T Price | Contact us |
