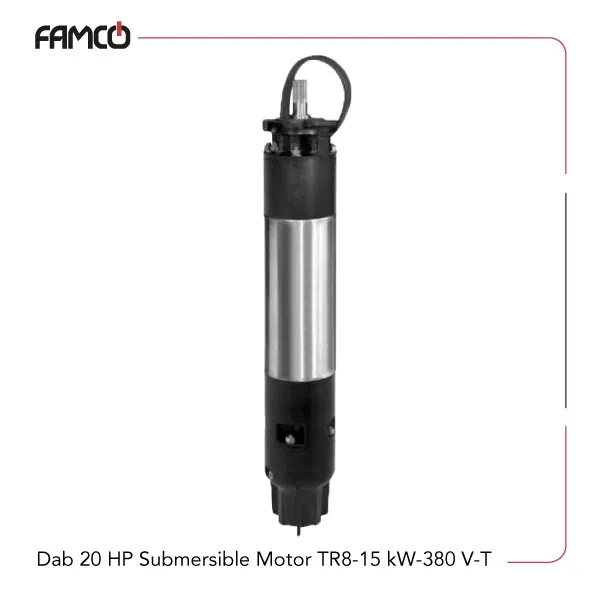

Dab 20 HP Submersible Motor TR8-15 kW-380 V-T Specifications
Dab 20 HP submersible motor TR8-15 kW-380 V-T is built around a 15 kW (20 HP) motor running at 1500 rpm, giving it strong performance across a wide range of industrial uses. It operates at 35 amperes and has a starting current ratio of 4.9, which supports a smooth start under load. During operation, this Dab submersible motor draws approximately 18,519 watts. The unit comes with a NEMA 8″ flanging for solid mounting and straightforward integration into existing systems. Its protection class is IP58, offering a high level of dust and water resistance, and an IP68 option is available for applications that call for even greater protection. The cooling system maintains a flow speed of 0.5 meters per second to keep temperatures in check during continuous operation. The power supply can handle variations from +6% to -10%, allowing the motor to function properly even when power conditions are not perfectly steady.
| Specification | Value |
| Power (kW) | 15 |
| Power (HP) | 20 |
| Current (A) | 35 |
| Starting Current Ratio | 4.9 |
| P1 (W) | 18519 |
| Speed (rpm) | 1500 |
| Flanging | NEMA 8″ |
| Protection Class | IP58(IP68 on request) |
| Cooling Flow Speed (m/s) | 0.5 |
| Power Supply Tolerance | +6%/-10% |
| Max Starts | 10/h |
| Max Operating Depth (m) | 300 |
| Max Operating Temperature (bar) | 60 |
| Horizontal Operation | 30 HP – 125 HP |
Dab 20 HP Submersible Motor TR8-15 kW-380 V-T Applications
- Water pumping stations
- Industrial manufacturing processes
- Oil and gas extraction
- Marine and underwater equipment
Dab 20 HP Submersible Motor TR8-15 kW-380 V-T Benefits
- High power output for demanding tasks
- Excellent protection against dust and water
- Stable operation with power fluctuations
- Suitable for deep underwater applications
Dab 20 HP Submersible Motor TR8-15 kW-380 V-T Price List
| No. | Name | Price |
| 1 | Dab 20 HP Submersible Motor TR8-15 kW-380 V-T Price | Contact us |
